Section 3: 3-Leg T Intersection Illustrations

Anchor: #i1005314

Introduction

This section illustrates the signing placement for the approach to a 3-leg T intersection. The figures are drawn so that the signed approach is intersecting a main roadway. Each of the figures illustrates how different intersection characteristics affect the signing on the approach.

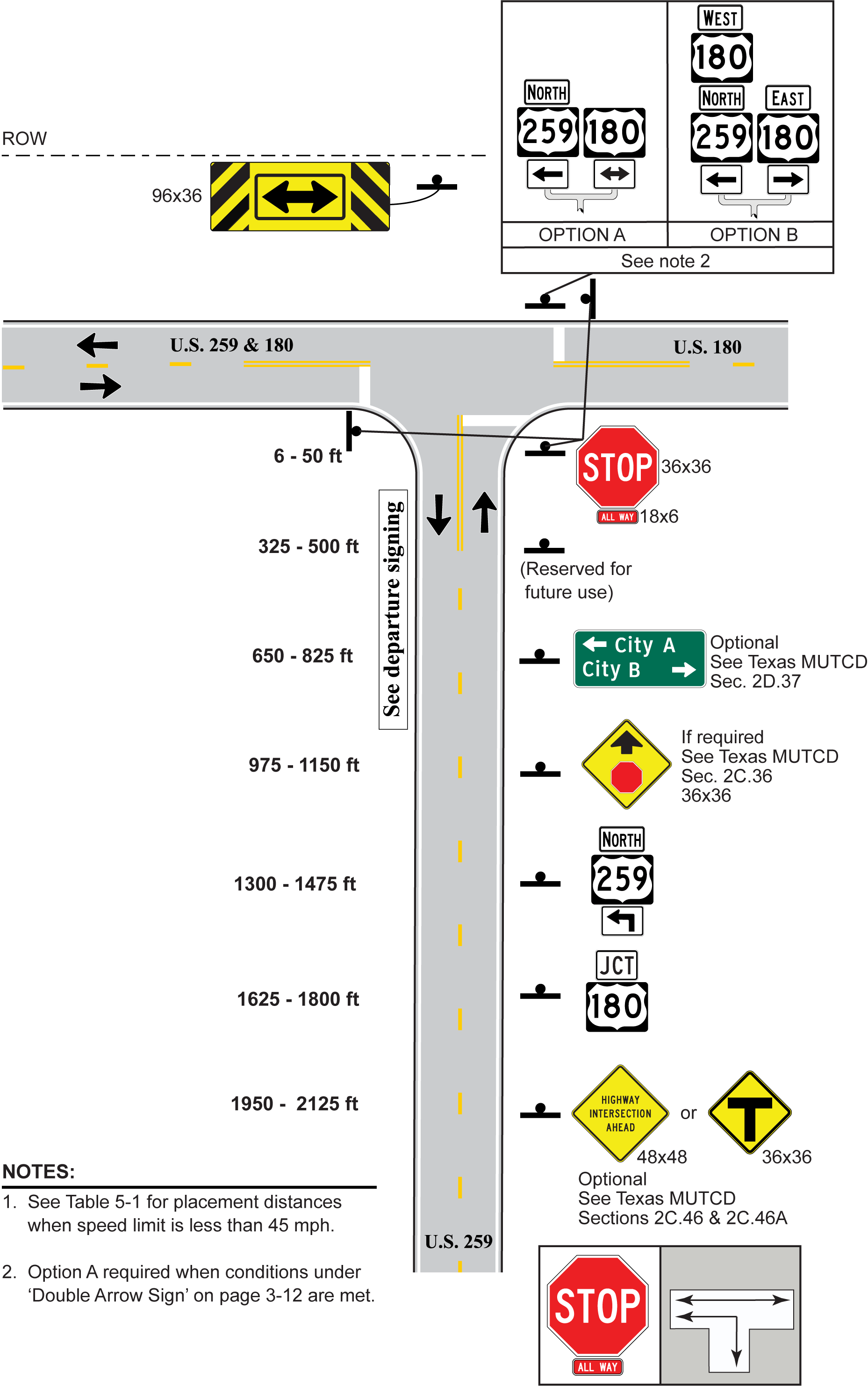

3-Leg T, 1 Approach Lane, Stop Control,
Approach Route Goes Left (click in image to see full-size image) Anchor: #USSNBYDCgrtop

Figure 5-4. 3-Leg T, 1 Approach Lane, Stop Control, Approach Route Goes Left

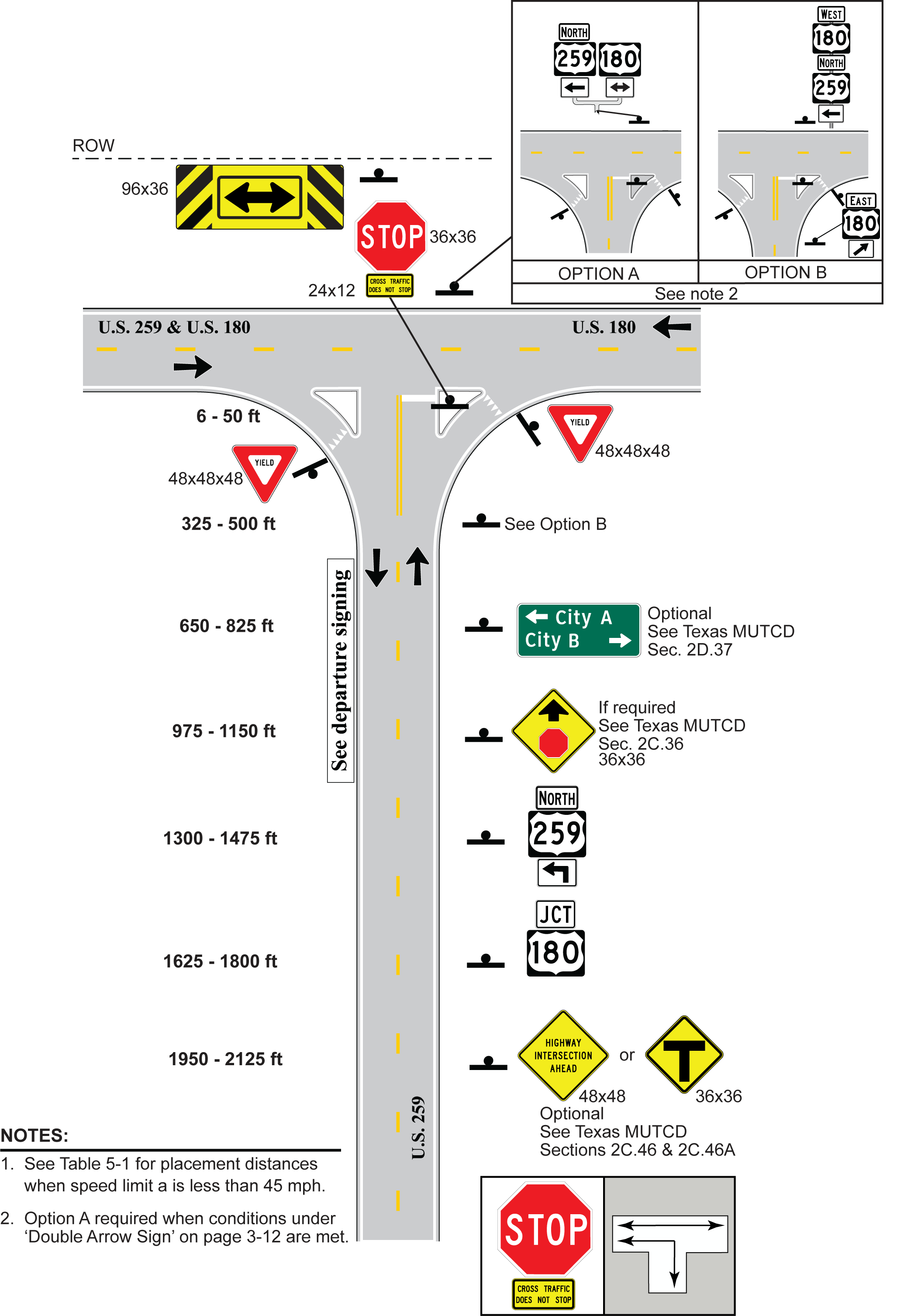

3-Leg T, 1 Approach Lane with Free Right
Turn, Stop Control, Approach Route Goes Left (click in image to see full-size image) Anchor: #JMKROAKFgrtop

Figure 5-5. 3-Leg T, 1 Approach Lane with Free Right Turn, Stop Control, Approach Route Goes Left

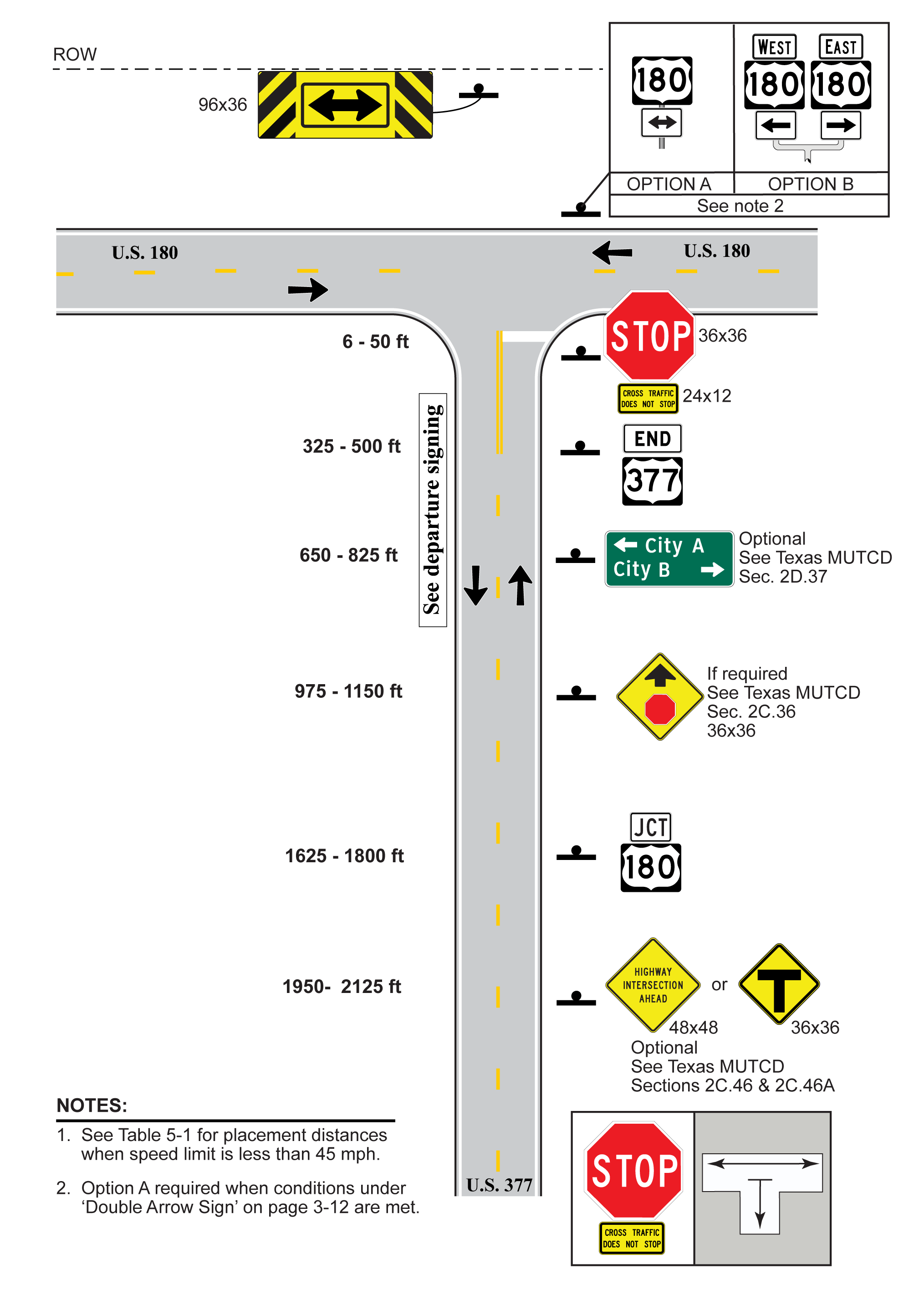

3-Leg T, 1 Approach Lane, Stop Control,
Approach Route Ends (click in image to see full-size image) Anchor: #SLDIPUTHgrtop

Figure 5-6. 3-Leg T, 1 Approach Lane, Stop Control, Approach Route Ends

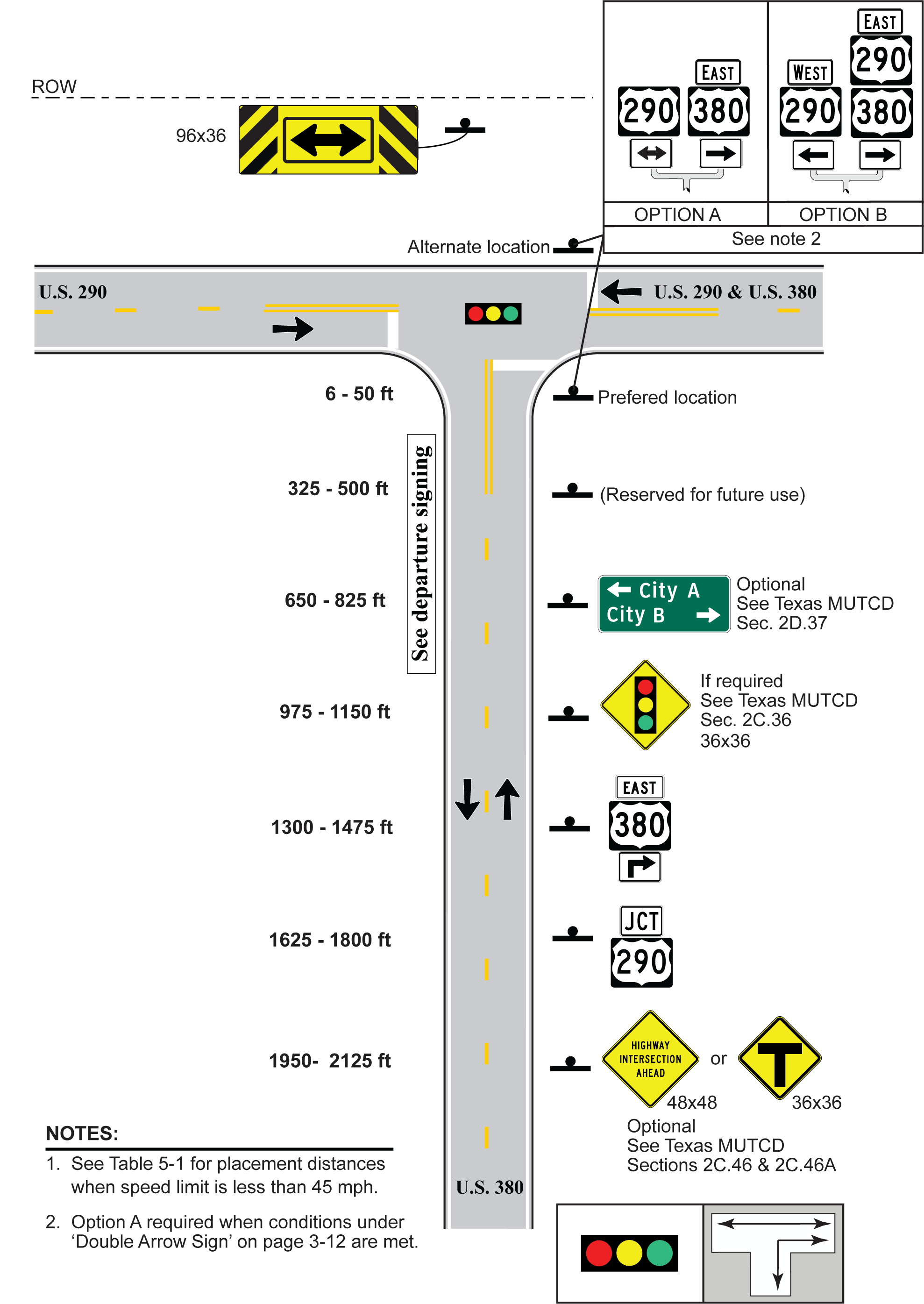

3-Leg T, 1 Approach Lane, Signal Control,
Approach Route Goes Right (click in image to see full-size image) Anchor: #HOUPNJIIgrtop

Figure 5-7. 3-Leg T, 1 Approach Lane, Signal Control, Approach Route Goes Right

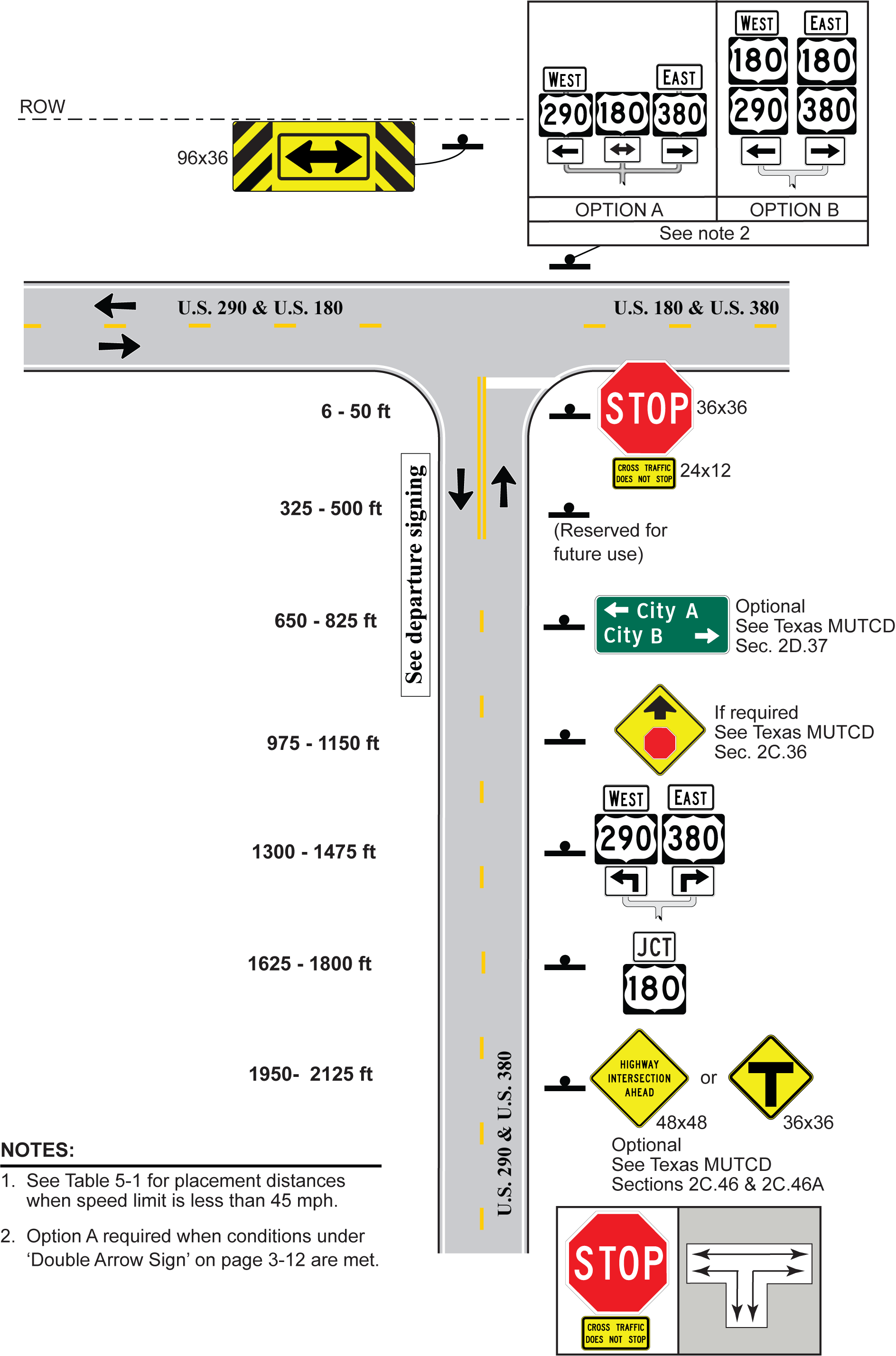

3-Leg T, 1 Approach Lane, Stop Control,
Approach Routes Go Left and Right (click in image to see full-size image) Anchor: #HNINFBIJgrtop

Figure 5-8. 3-Leg T, 1 Approach Lane, Stop Control, Approach Routes Go Left and Right

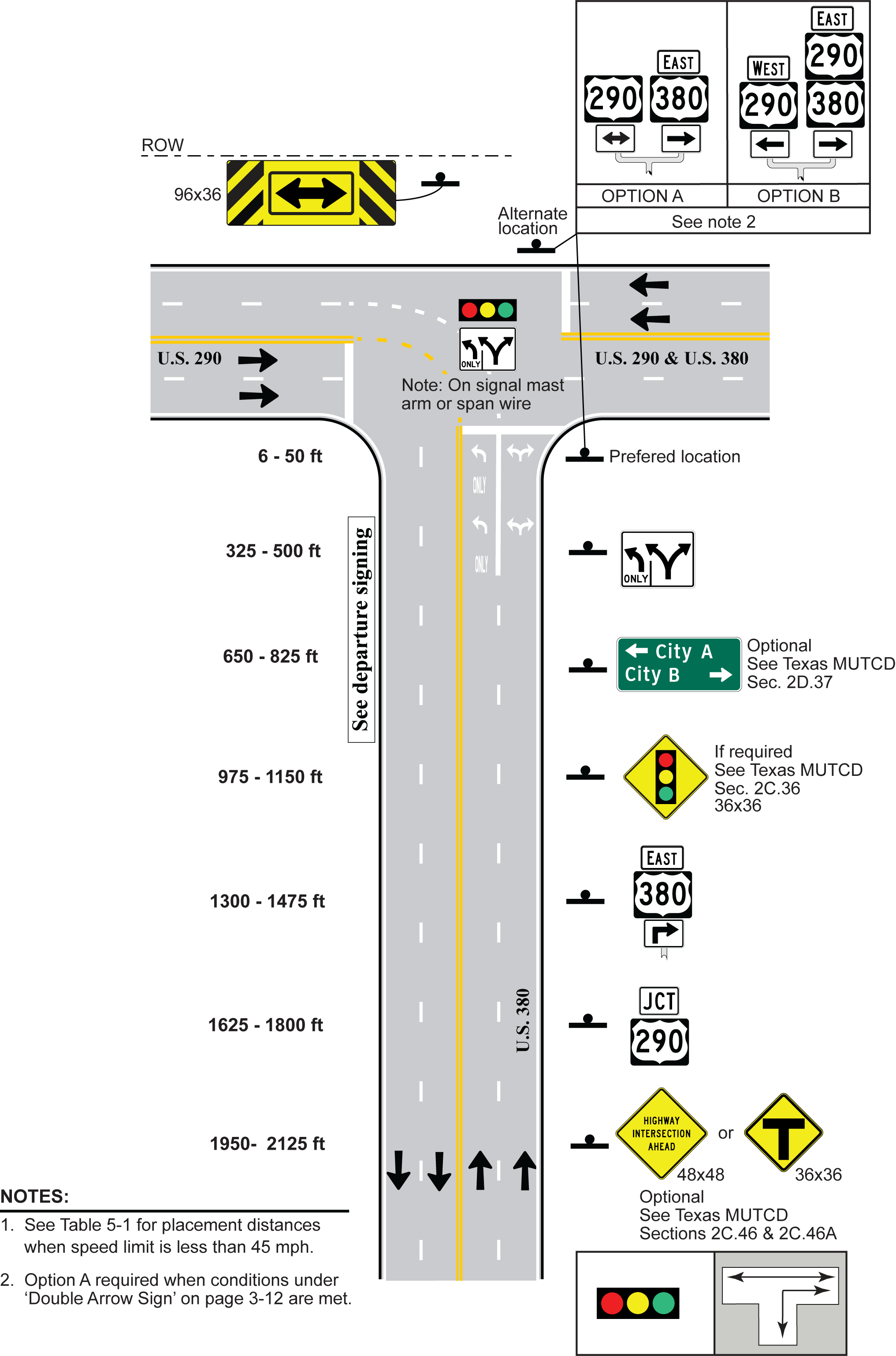

3-Leg T, 2 Approach Lanes with Dual Left,
Signal Control, Approach Route Goes Right (click in image to see full-size image) Anchor: #GOPTLJJSgrtop

Figure 5-9. 3-Leg T, 2 Approach Lanes with Dual Left, Signal Control, Approach Route Goes Right
