Section 3: Lateral Placement at Intersections

Anchor: #i999958

Introduction

Figures 4-10 through 4-14 on the following pages illustrate additional lateral placement situations for Stop and Yield signs and other intersection-related situations. Section 2B.10 and Figure 2A-3 of the Texas MUTCD describe the requirements for the placement of Stop and Yield signs.

Stop/Yield Sign Lateral Placement at a
Channelized Intersection (click in image to see full-size image) Anchor: #SYJJBDQLgrtop

Figure 4-10. Stop/Yield Sign Lateral Placement at a Channelized Intersection

Stop/Yield Sign Lateral Placement at Intersection
with Divisional Island (click in image to see full-size image) Anchor: #UXAVTTTUgrtop

Figure 4-11. Stop/Yield Sign Lateral Placement at Intersection with Divisional Island

Stop/Yield Sign Lateral Placement at a
Wide-Throat Intersection (click in image to see full-size image) Anchor: #GKSVNWATgrtop

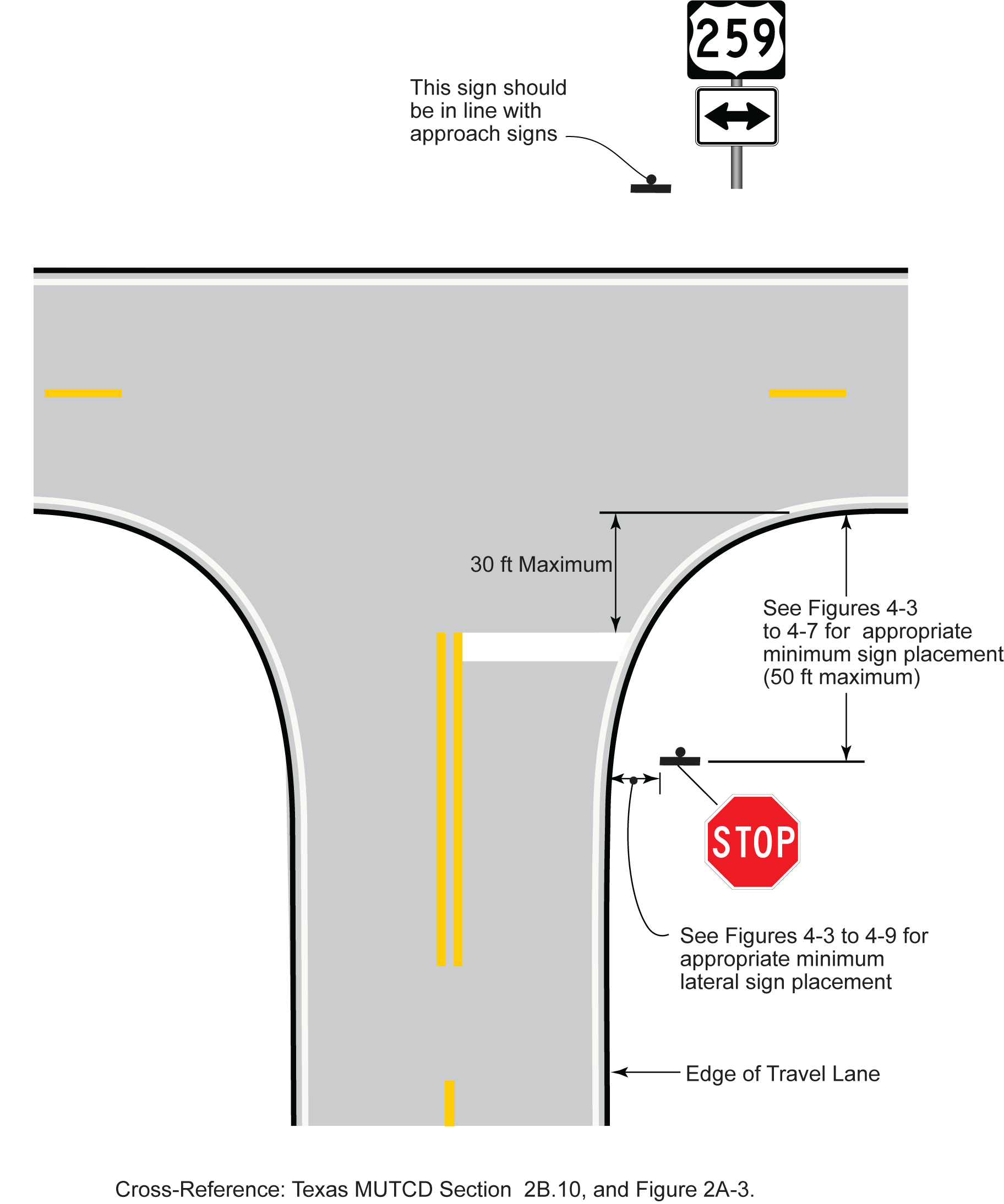

Figure 4-12. Stop/Yield Sign Lateral Placement at a Wide-Throat Intersection

Keep Right Sign Lateral Placement on a
Divisional Island (click in image to see full-size image) Anchor: #QAHMMPJMgrtop

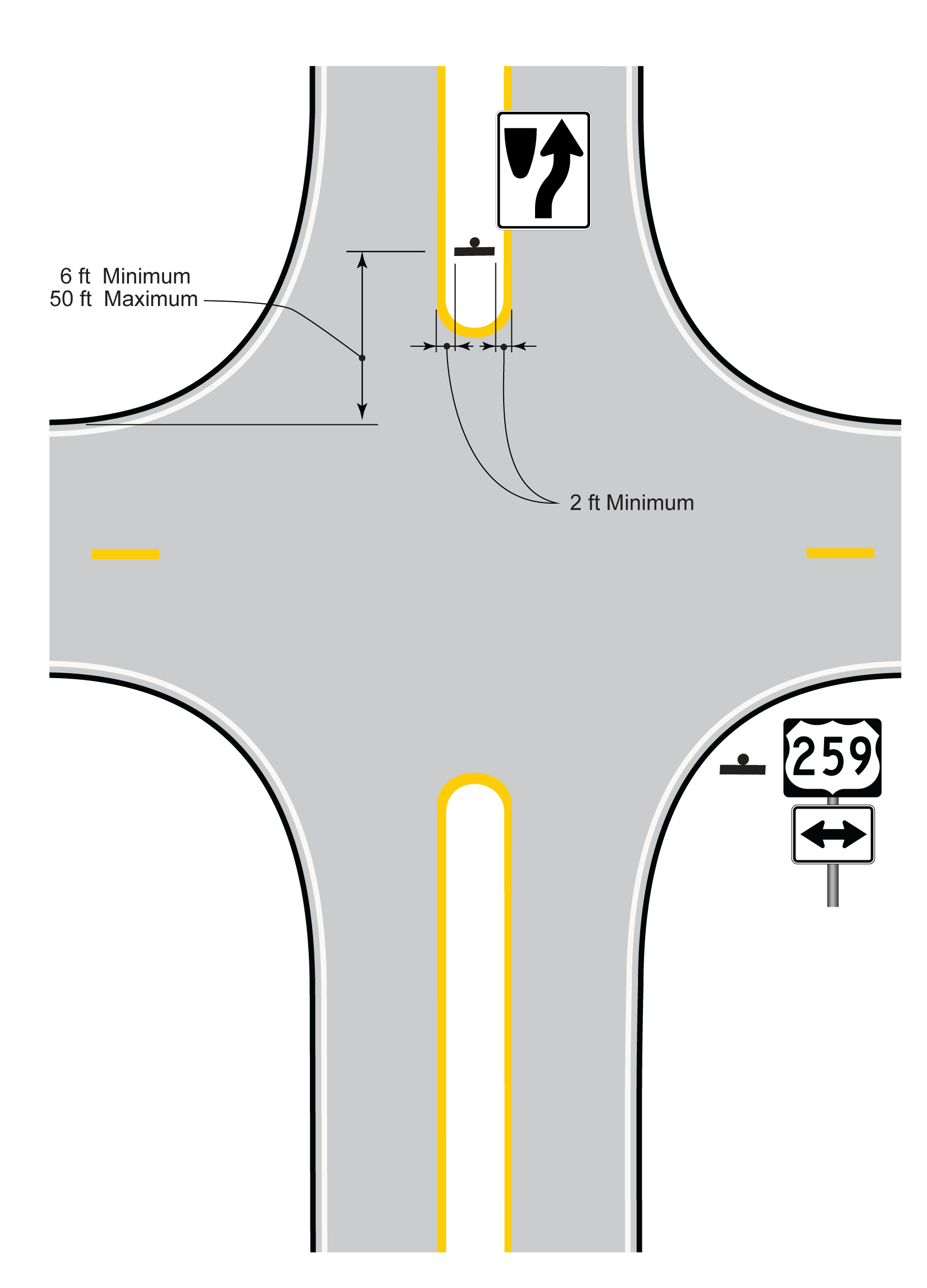

Figure 4-13. Keep Right Sign Lateral Placement on a Divisional Island

Placement of Large Arrow Panel (click in image to see full-size image) Anchor: #PKADXGBFgrtop

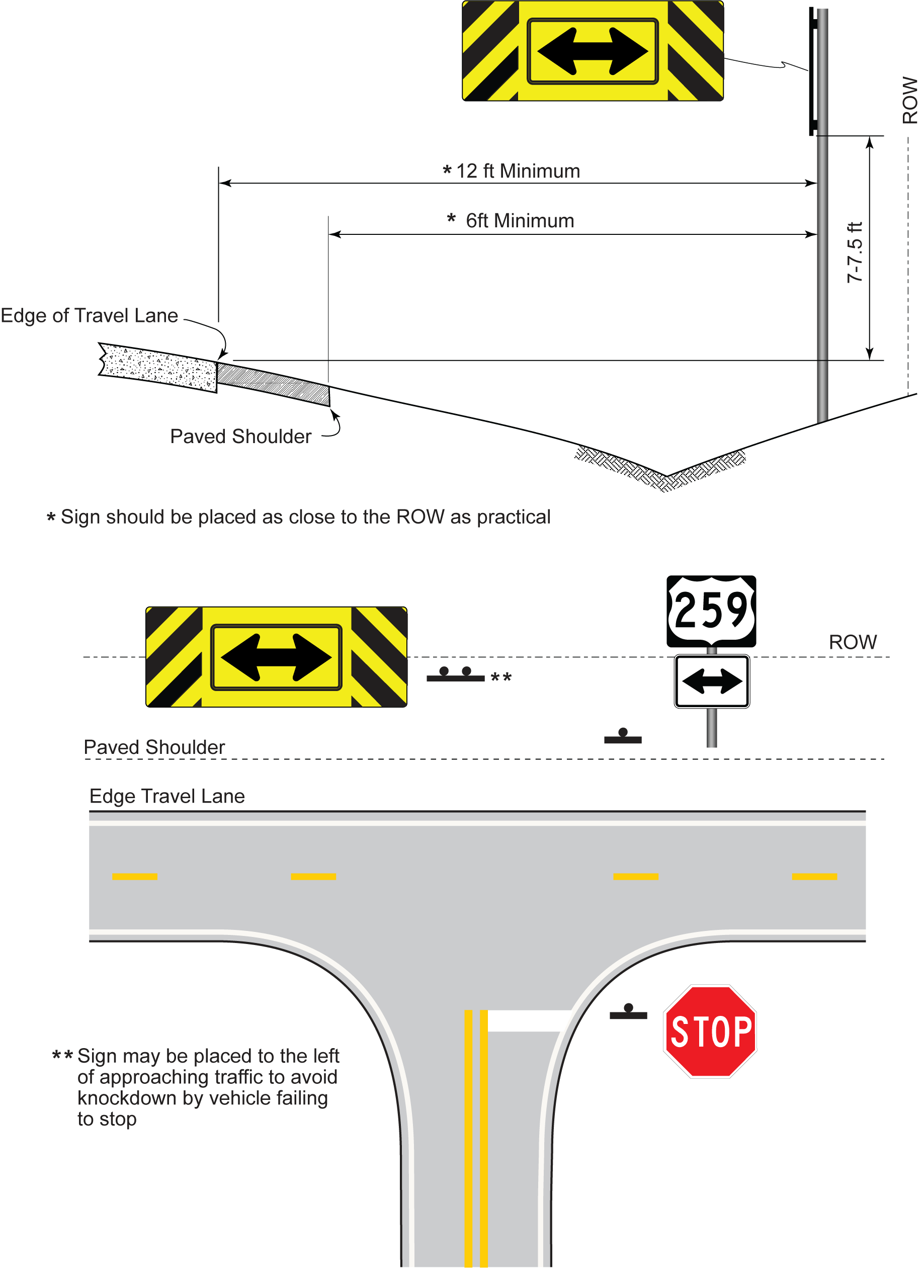

Figure 4-14. Placement of Large Arrow Panel
