Section 5: 4-Leg Intersection Illustrations

Anchor: #i1005481

Introduction

This section illustrates the signing placement for an approach to a 4-leg intersection. Each of the figures illustrates how different intersection characteristics affect the signing on the approach.

4-Leg, 1 Approach Lane, Stop Control, Approach
Route Goes Through (click in image to see full-size image) Anchor: #UBLVTDGLgrtop

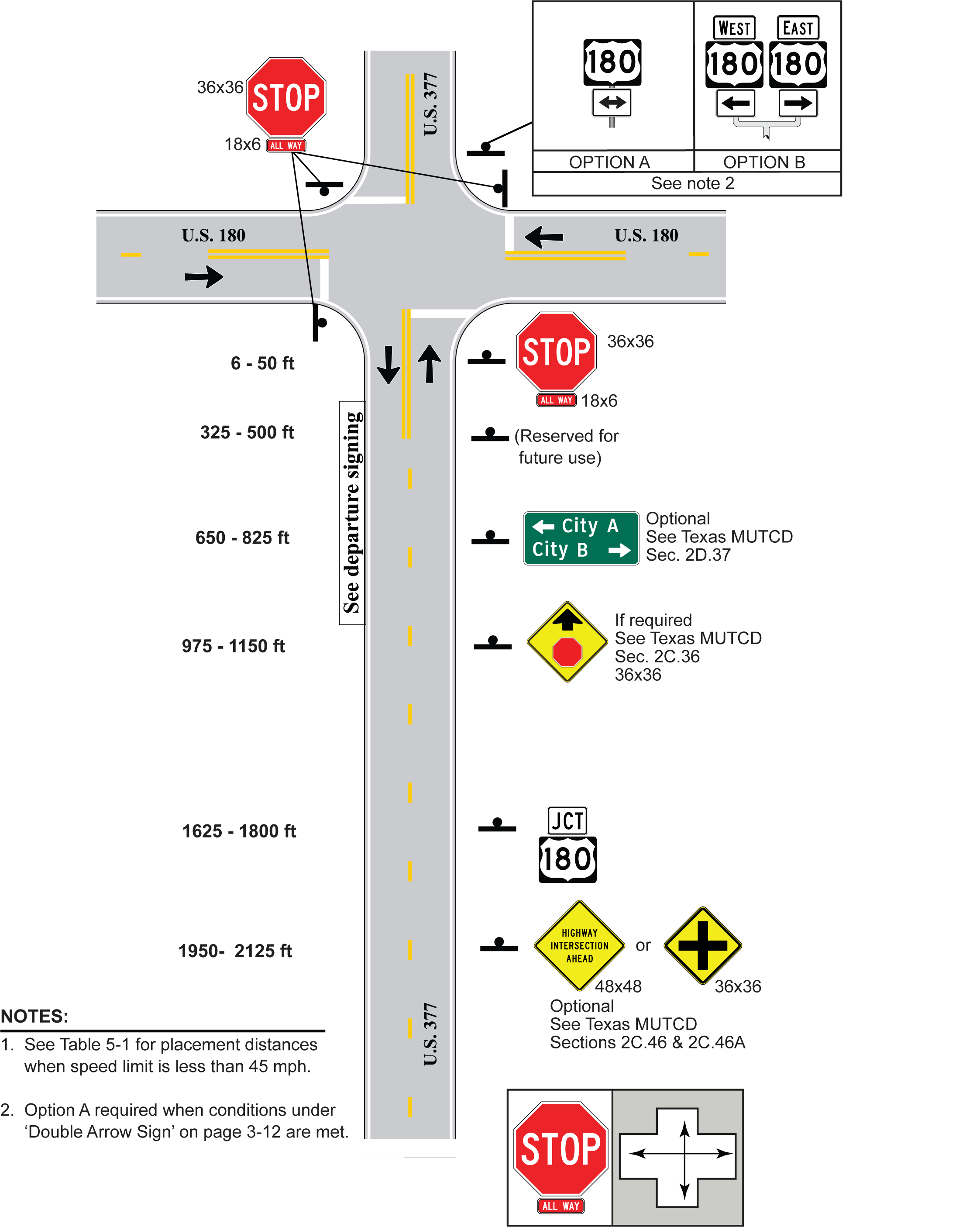

Figure 5-17. 4-Leg, 1 Approach Lane, Stop Control, Approach Route Goes Through

4-Leg, 1 Approach Lane with Free Right
Turn, No Control, Approach Lane Goes Through (click in image to see full-size image) Anchor: #AIKRCBHLgrtop

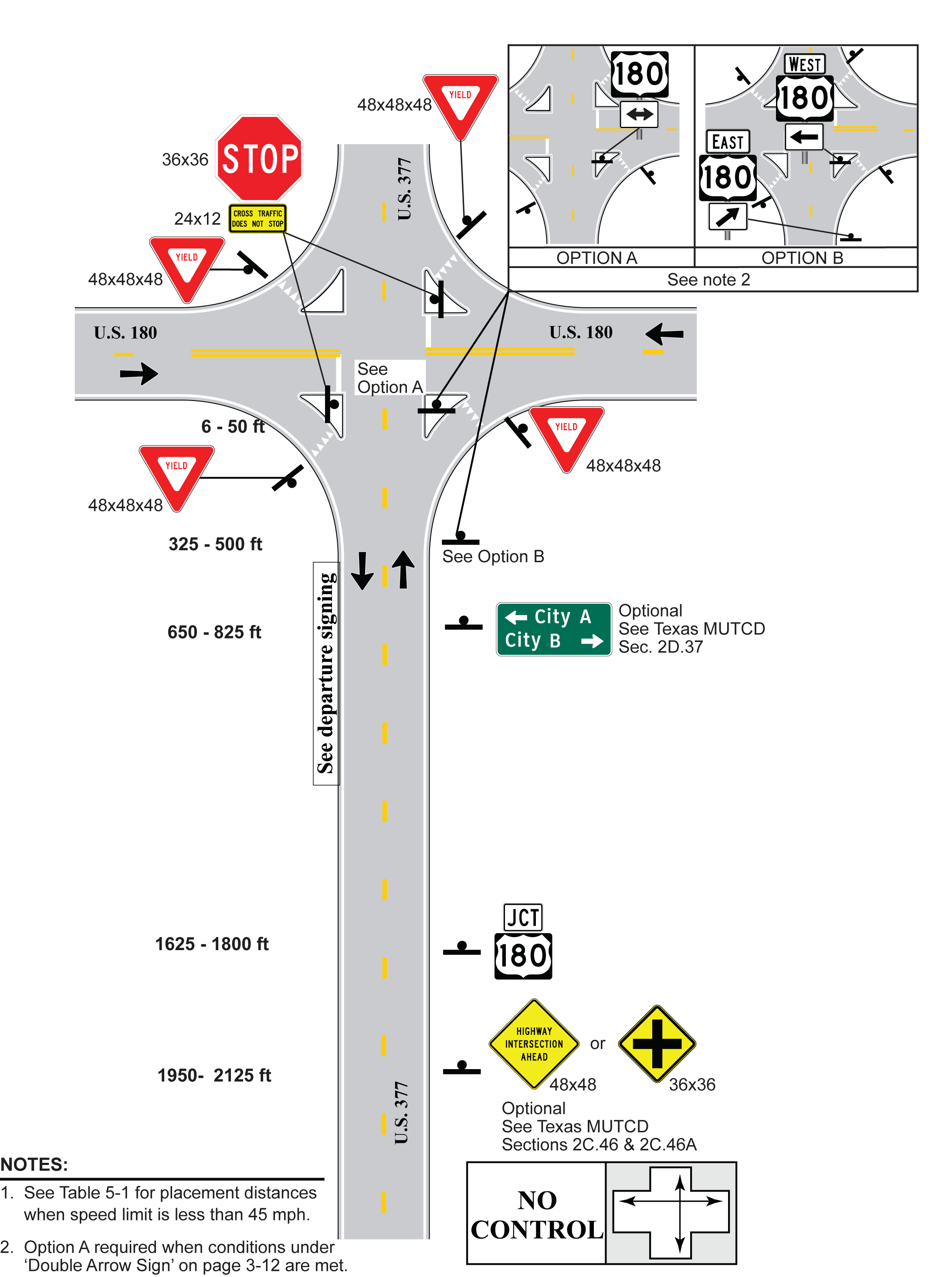

Figure 5-18. 4-Leg, 1 Approach Lane with Free Right Turn, No Control, Approach Lane Goes Through

4-Leg, 1 Approach Lane, Stop Control, Approach
Route Goes Through and Left (click in image to see full-size image) Anchor: #BYABHAONgrtop

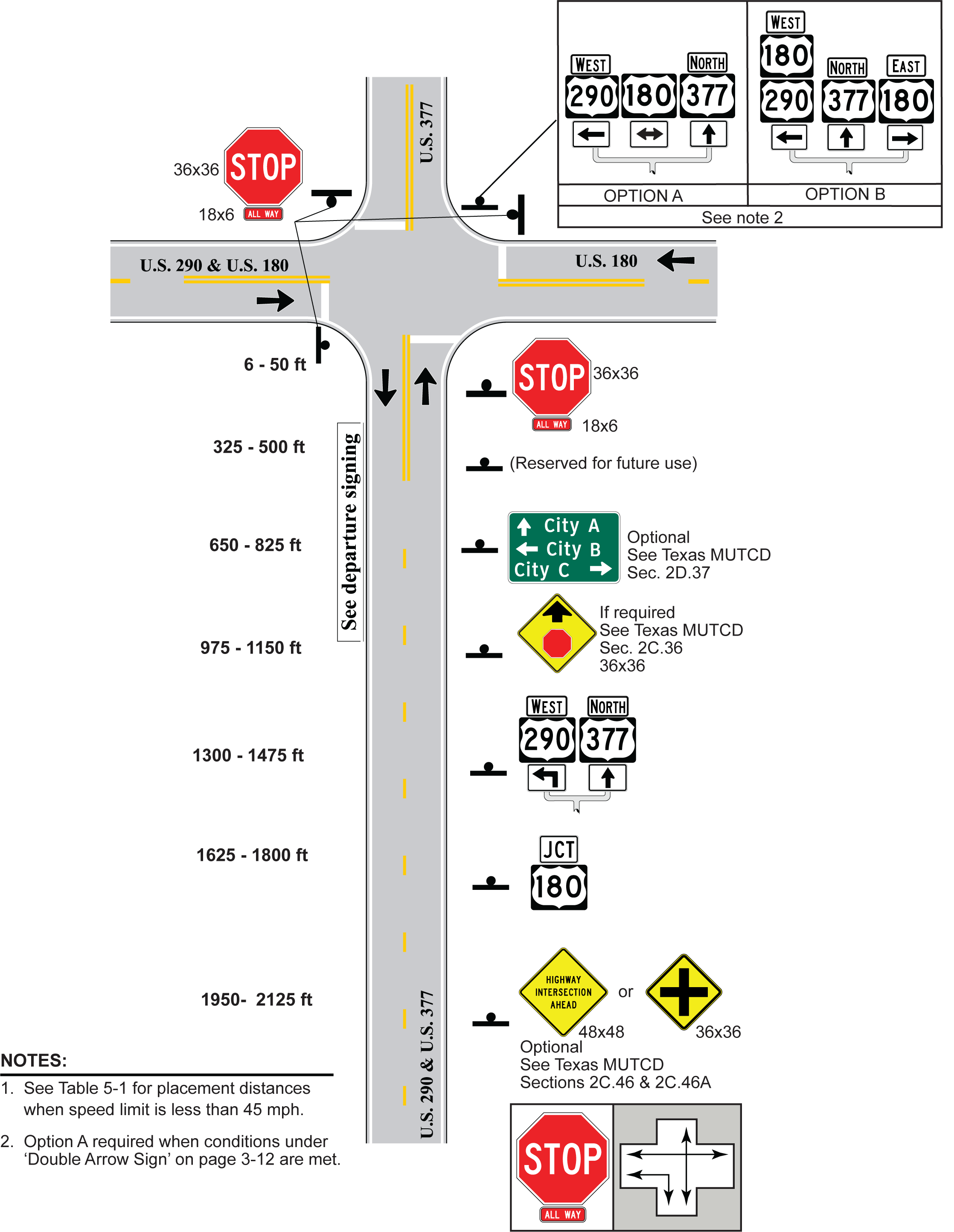

Figure 5-19. 4-Leg, 1 Approach Lane, Stop Control, Approach Route Goes Through and Left

4-Leg, 1 Approach Lane, Signal Control,
Approach Route Goes Through (click in image to see full-size image) Anchor: #GTSRRBKMgrtop

Figure 5-20. 4-Leg, 1 Approach Lane, Signal Control, Approach Route Goes Through

4-Leg, 1 Approach Lane, Signal Control,
Approach Route Goes Through and Right (click in image to see full-size image) Anchor: #LKRVGBCNgrtop

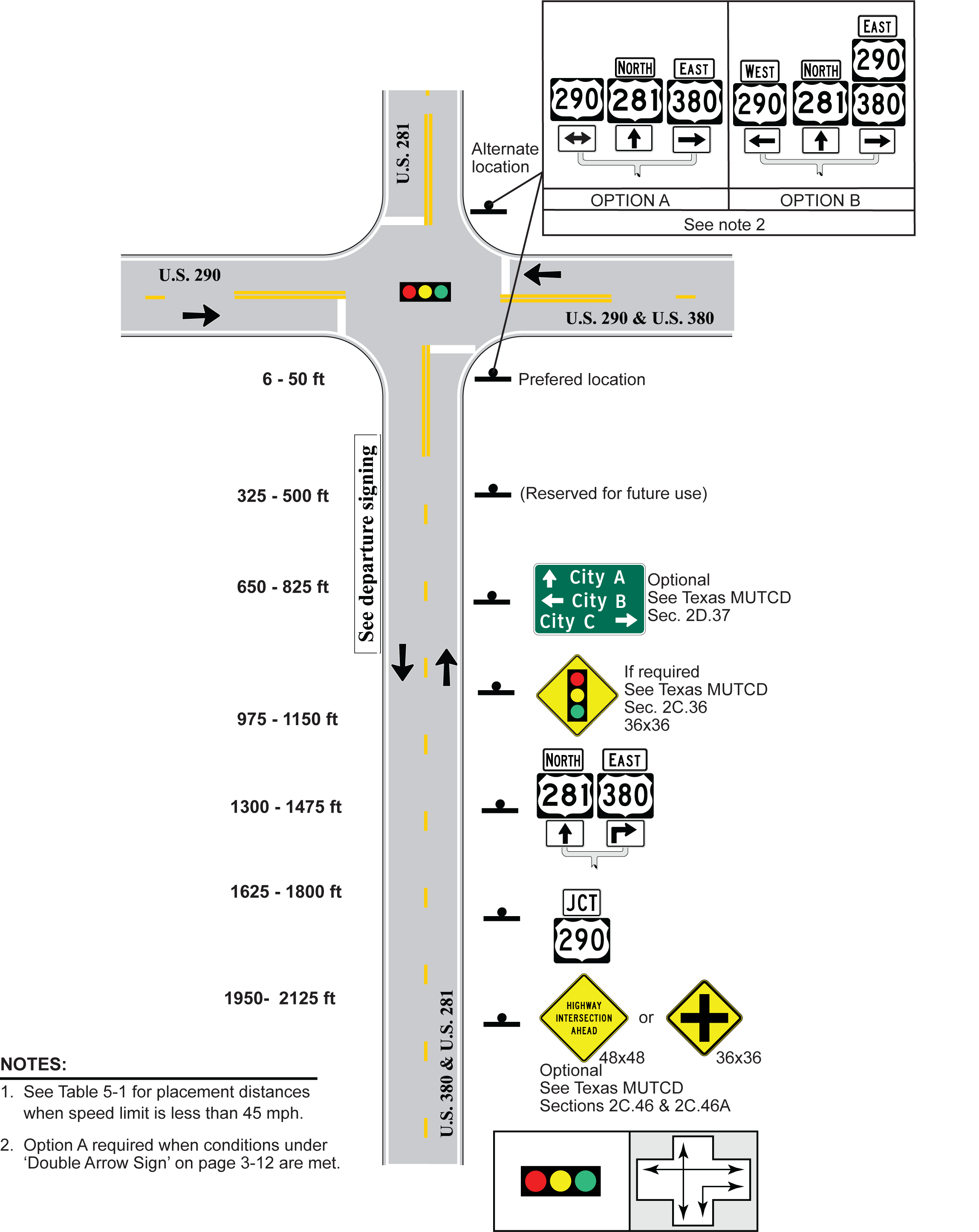

Figure 5-21. 4-Leg, 1 Approach Lane, Signal Control, Approach Route Goes Through and Right

4-Leg, 1 Approach Lane, Signal Control,
Approach Route Goes Through and Left (click in image to see full-size image) Anchor: #JBENVVRCgrtop

Figure 5-22. 4-Leg, 1 Approach Lane, Signal Control, Approach Route Goes Through and Left

4-Leg, 2 Approach Lanes, No Control, Approach
Route Goes Through (click in image to see full-size image) Anchor: #TGDJEWVAgrtop

Figure 5-23. 4-Leg, 2 Approach Lanes, No Control, Approach Route Goes Through

4-Leg, 1 Approach Lane + LT, Signal Control,
Approach Route Goes Through (click in image to see full-size image) Anchor: #MRXBICUQgrtop

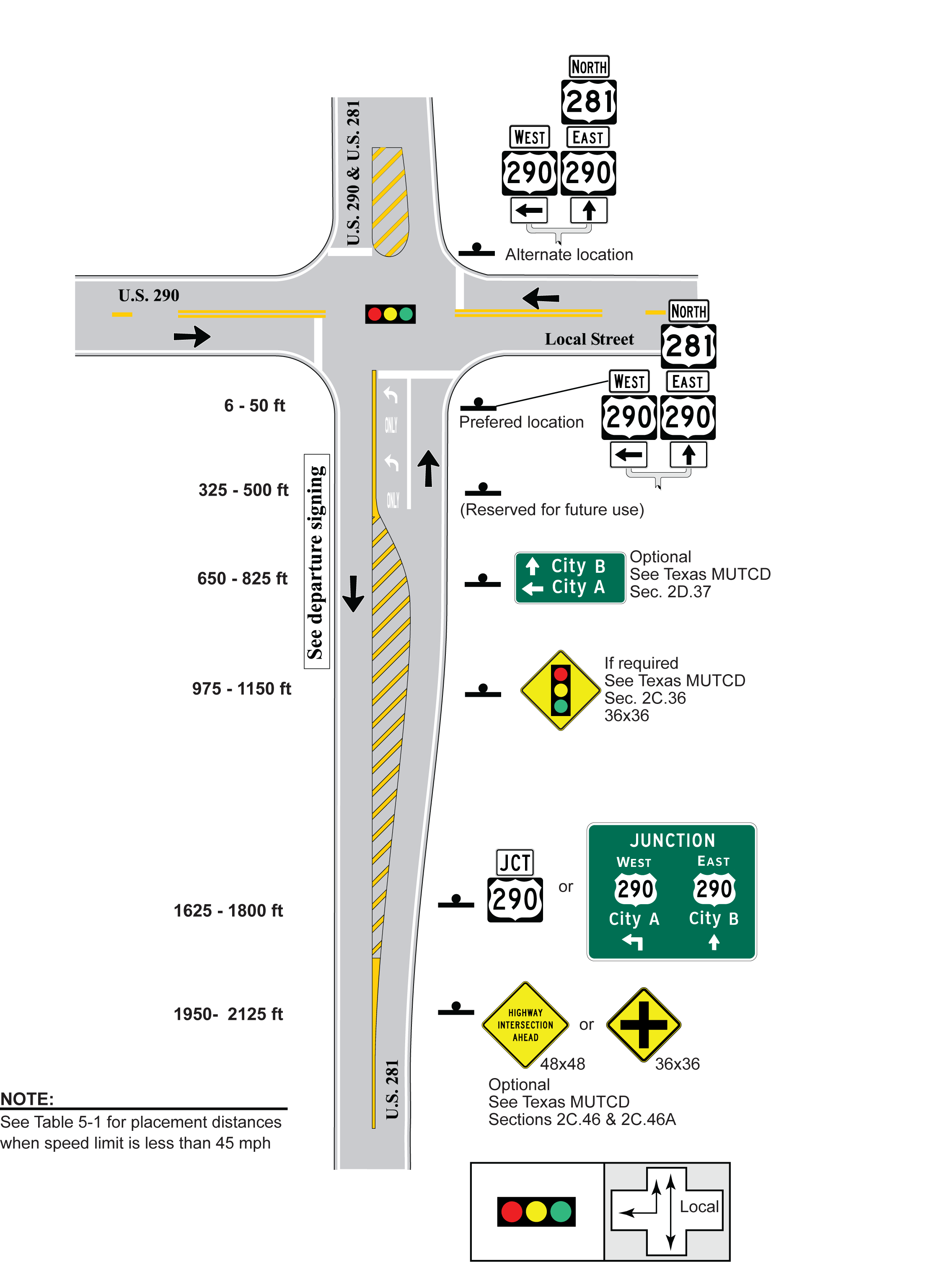

Figure 5-24. 4-Leg, 1 Approach Lane + LT, Signal Control, Approach Route Goes Through

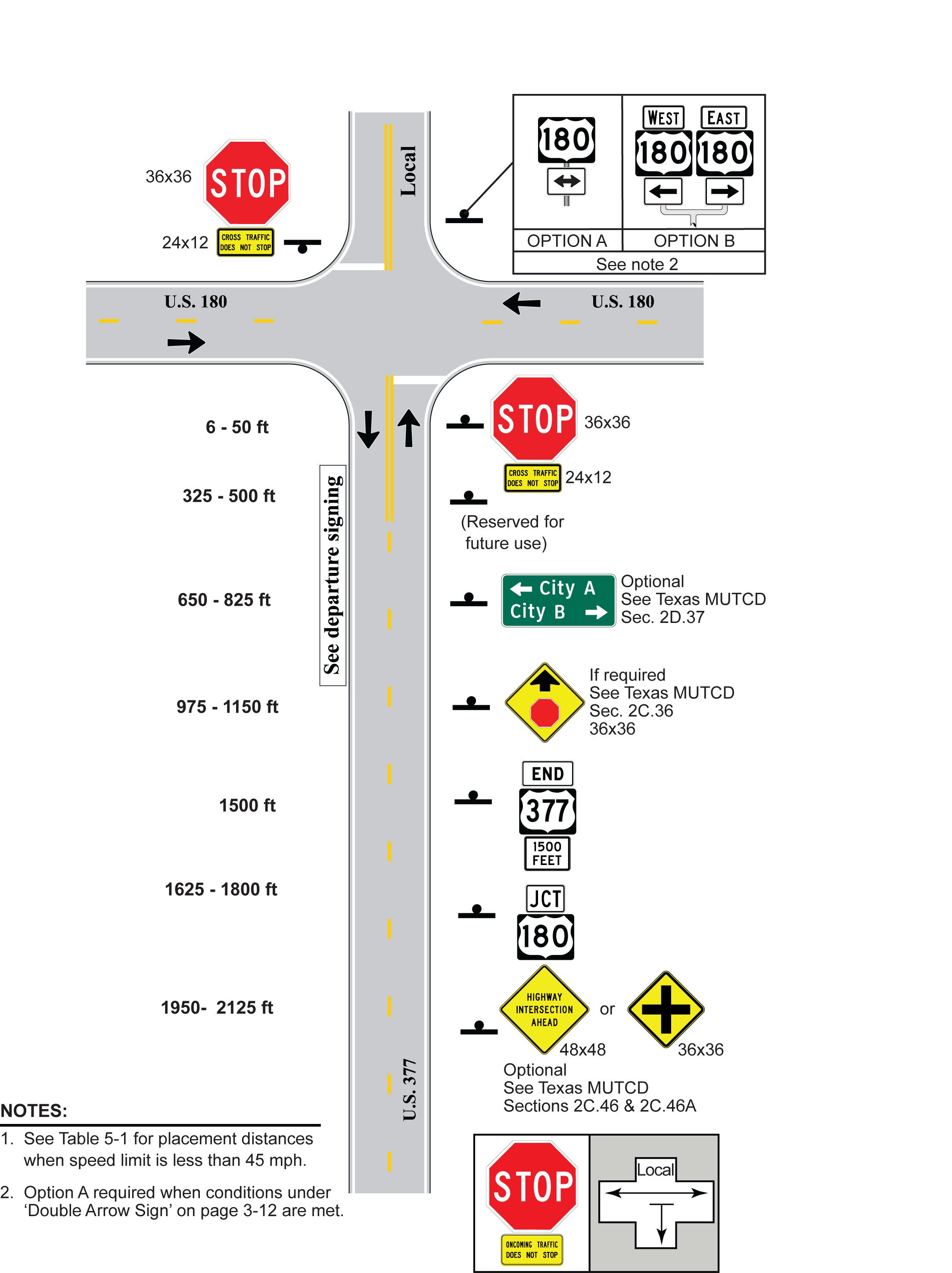

4-Leg with Local Street, 1 Approach Lane,
Stop Control, Approach Route Ends (click in image to see full-size image) Anchor: #VAQCDBBXgrtop

Figure 5-25. 4-Leg with Local Street, 1 Approach Lane, Stop Control, Approach Route Ends

4-Leg with Local Street, 1 Approach Lane,
Stop Control, Approach Route Goes Left (click in image to see full-size image) Anchor: #MLIKNAUMgrtop

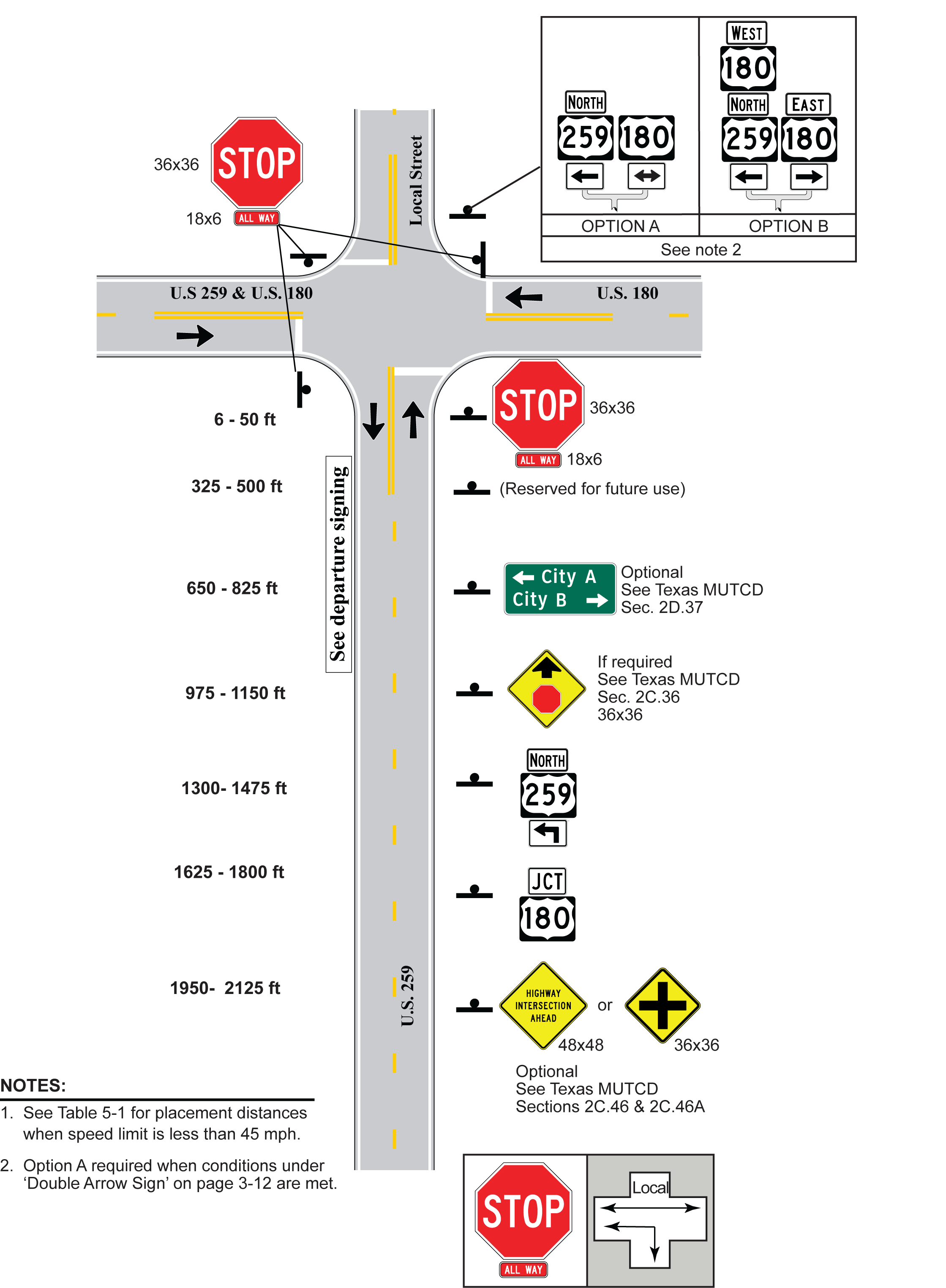

Figure 5-26. 4-Leg with Local Street, 1 Approach Lane, Stop Control, Approach Route Goes Left

4-Leg with Local Street, 1 Approach Lane,
Stop Control, Approach Route Goes Left and Right (click in image to see full-size image) Anchor: #LUEQLXCDgrtop

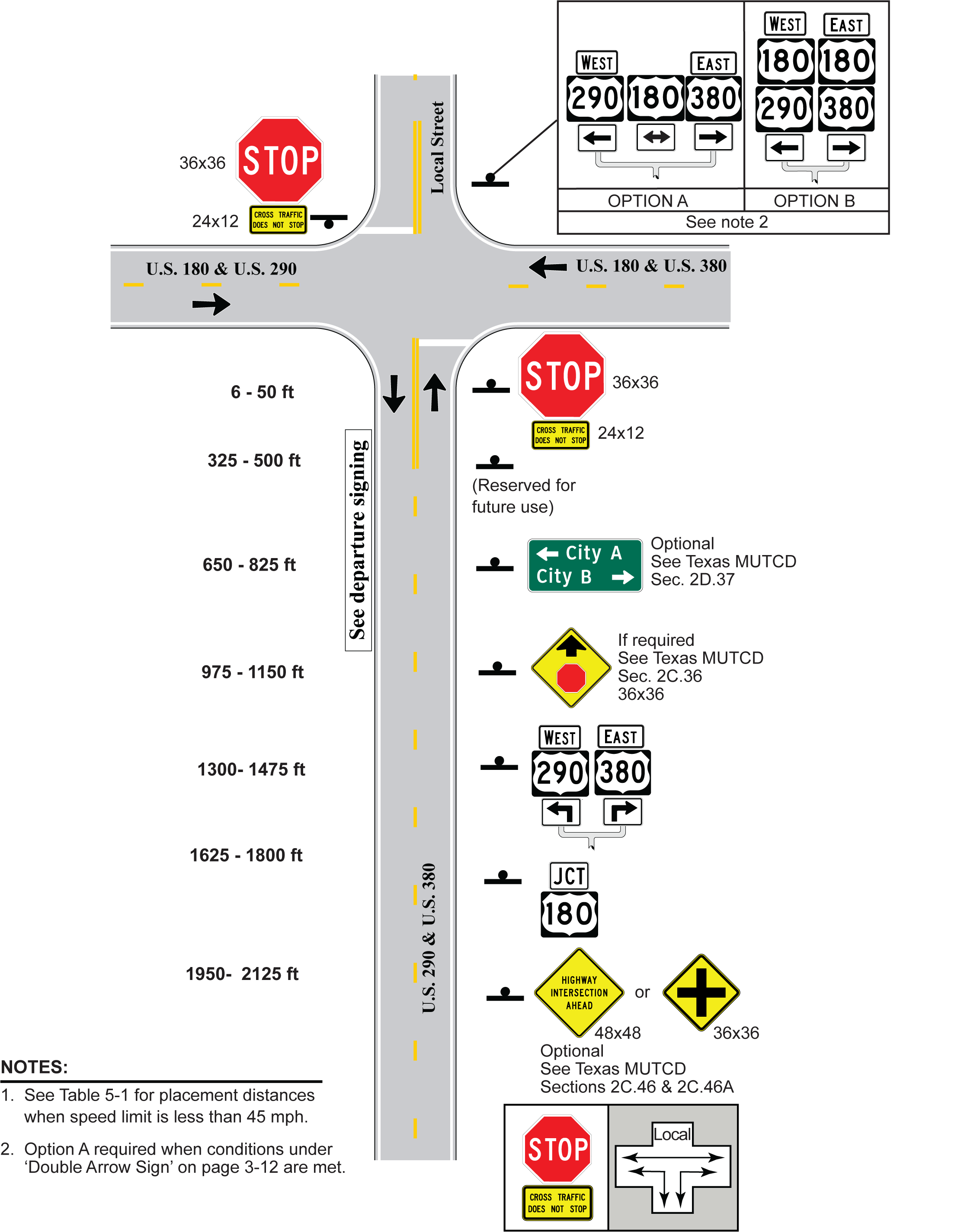

Figure 5-27. 4-Leg with Local Street, 1 Approach Lane, Stop Control, Approach Route Goes Left and Right

4-Leg with Local Street, 1 Approach Lane,
Signal Control, Approach Route Goes Right (click in image to see full-size image) Anchor: #WQICFAJNgrtop

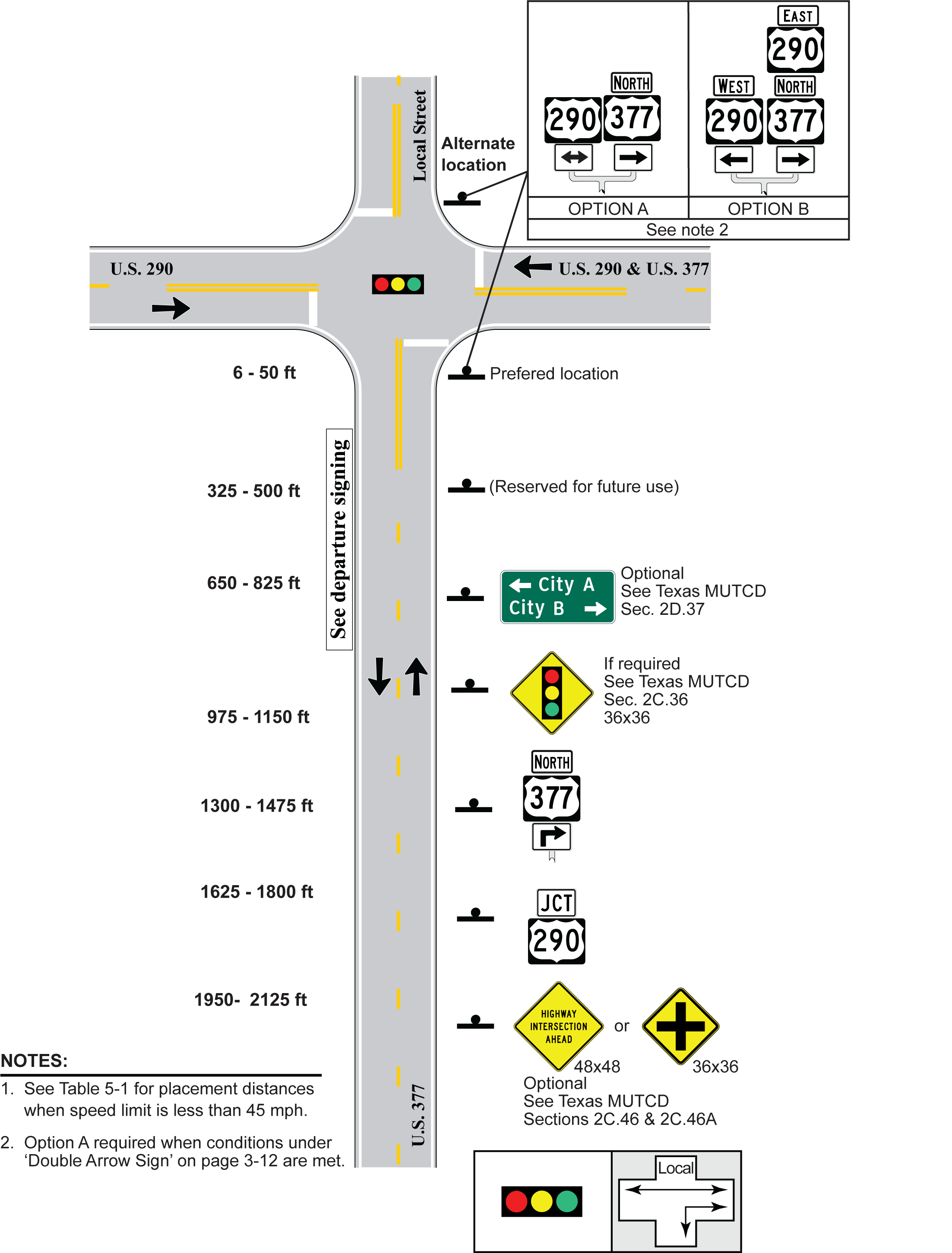

Figure 5-28. 4-Leg with Local Street, 1 Approach Lane, Signal Control, Approach Route Goes Right

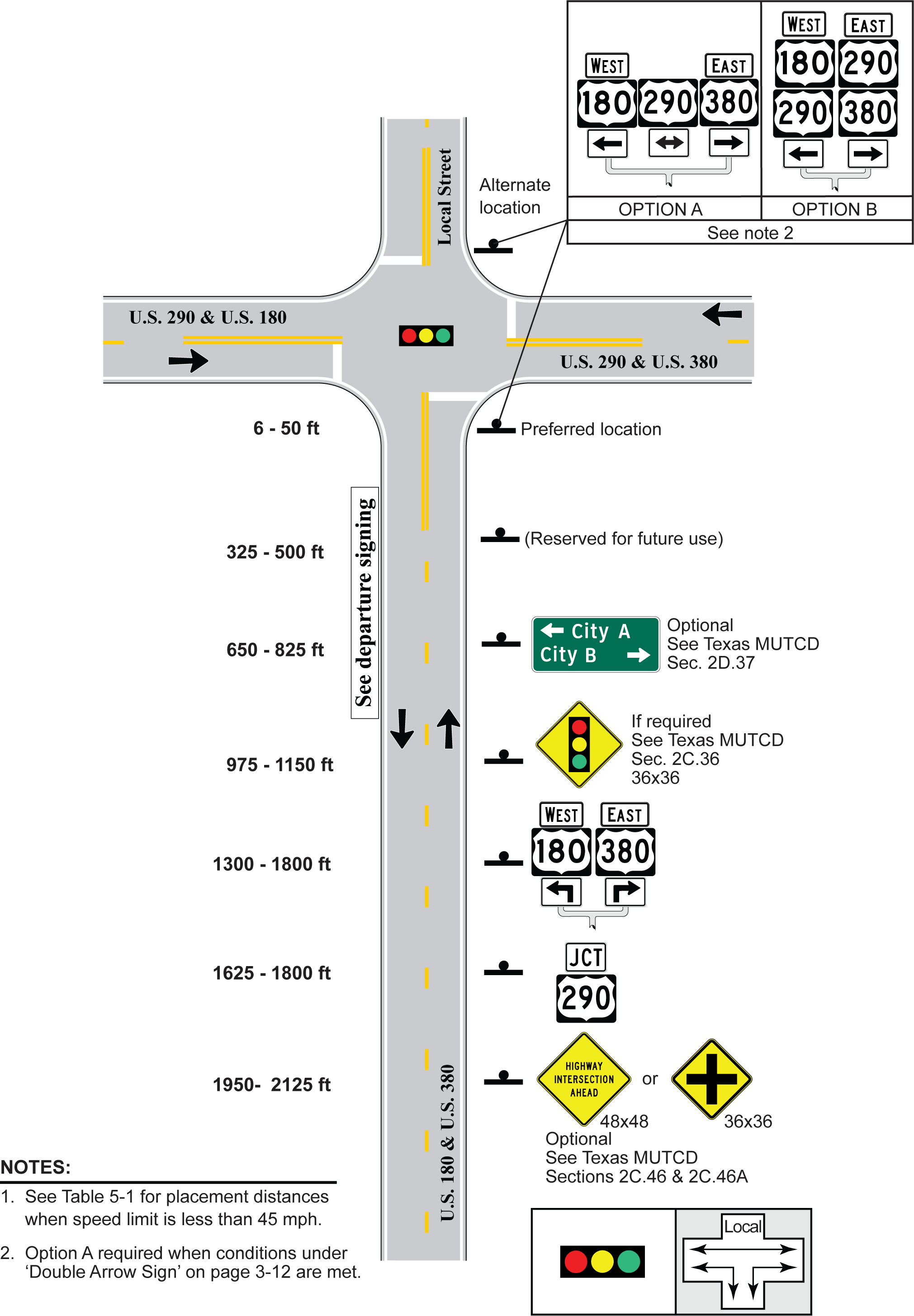

4-Leg, 1 Approach Lane, Signal Control,
Approach Route Goes Left and Right (click in image to see full-size image) Anchor: #IMJXIAUYgrtop

Figure 5-29. 4-Leg, 1 Approach Lane, Signal Control, Approach Route Goes Left and Right
