Section 5: Interchange Applications

Anchor: #i1000334

Introduction

In some situations, signing for a conventional highway is located at grade-separated interchanges or the ramps and frontage roads of freeways. This section addresses the unique signing applications of these situations.

Anchor: #i1000344

Interchanges

Signing situations for grade-separated interchange off-ramps, on-ramps, gore areas, and streets approaching the interchange are illustrated in Figures 7-16 through 7-18. The figures presented are intended to show guide signing and regulatory signing principles to prevent wrong way driving. Not all approach and departure signing is shown based on space limitations and chapters 5 and 6 in this manual should be consulted for placement of these signs.

Anchor: #i1000354

Frontage Roads

Frontage road signing issues for both the one-way and two-way frontage roads and their on- and off-ramps are addressed in this subsection. Figures 7-19 through 7-21 illustrate the placement of the signing on the frontage road and the intersection of the frontage road or ramp with a conventional highway.

Diamond Interchange with No Frontage Roads (click in image to see full-size image) Anchor: #RTKKPDDCgrtop

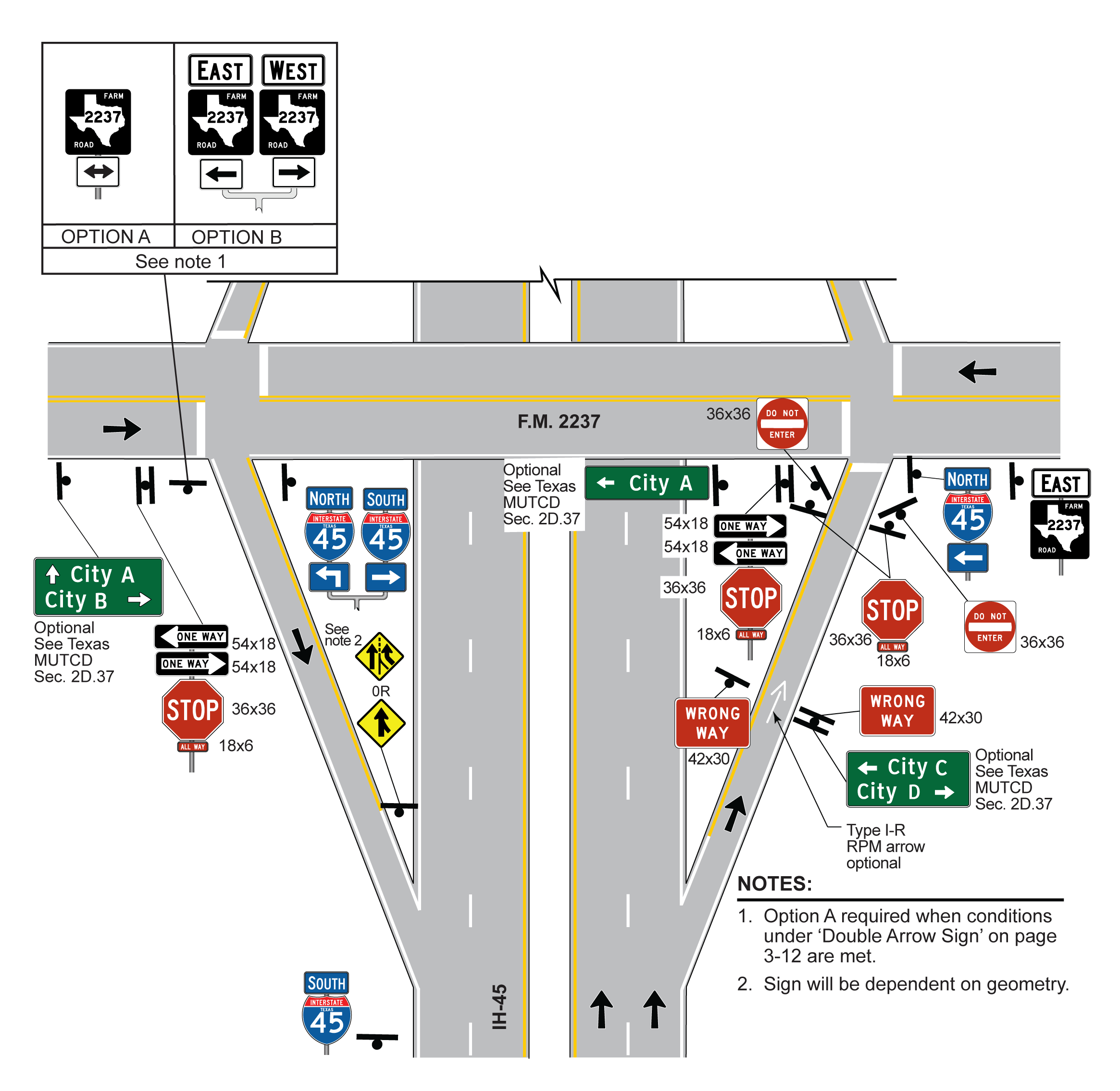

Figure 7-16. Diamond Interchange with No Frontage Roads

Diamond Interchange with One-Way Frontage
Roads (click in image to see full-size image) Anchor: #VMXMLOVPgrtop

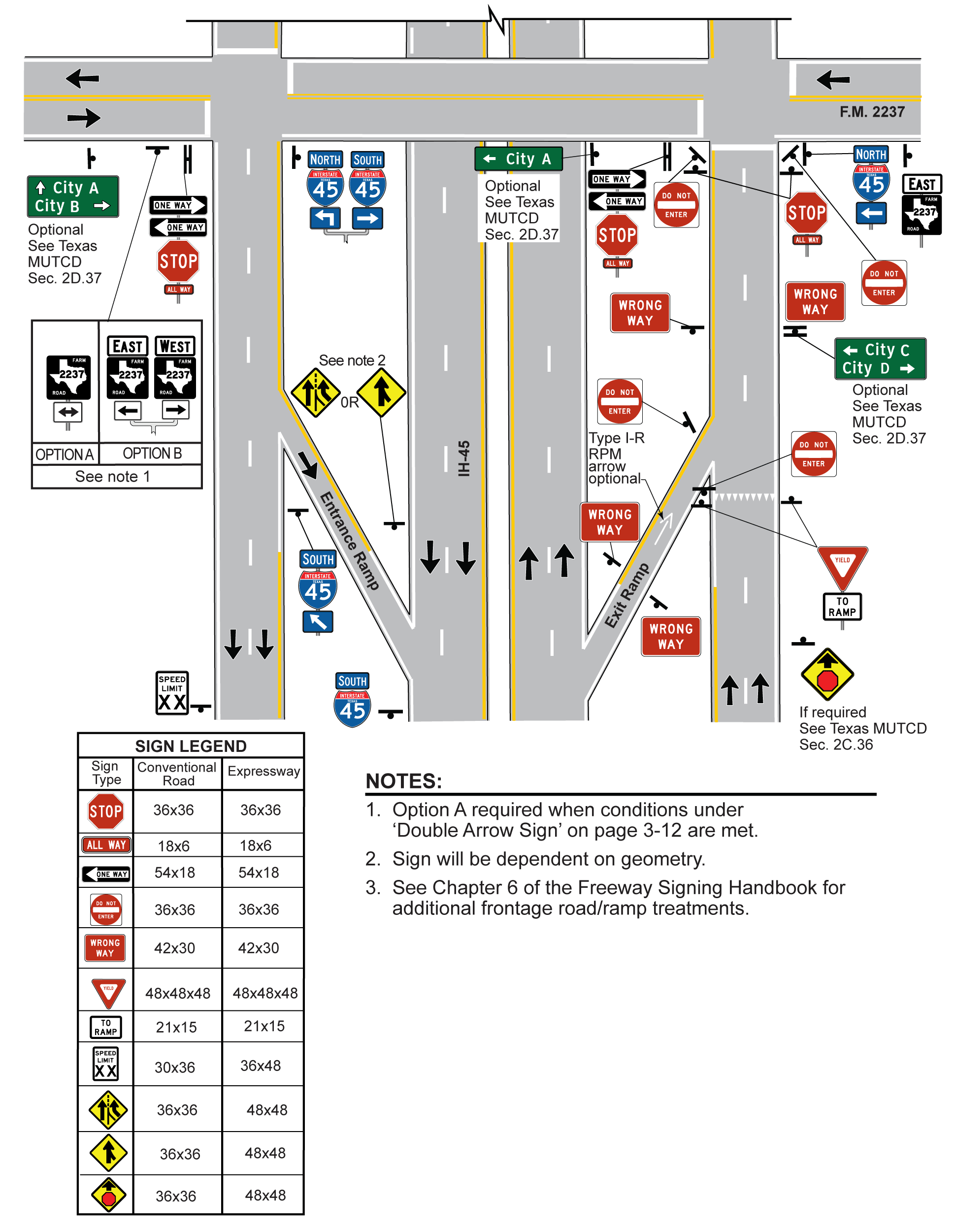

Figure 7-17. Diamond Interchange with One-Way Frontage Roads

Diamond Interchange with Two-Way Frontage
Roads (click in image to see full-size image) Anchor: #SDDMBVJSgrtop

Figure 7-18. Diamond Interchange with Two-Way Frontage Roads

One-Way Frontage Road Intersection Area
Detail (click in image to see full-size image) Anchor: #JOFDMXVUgrtop

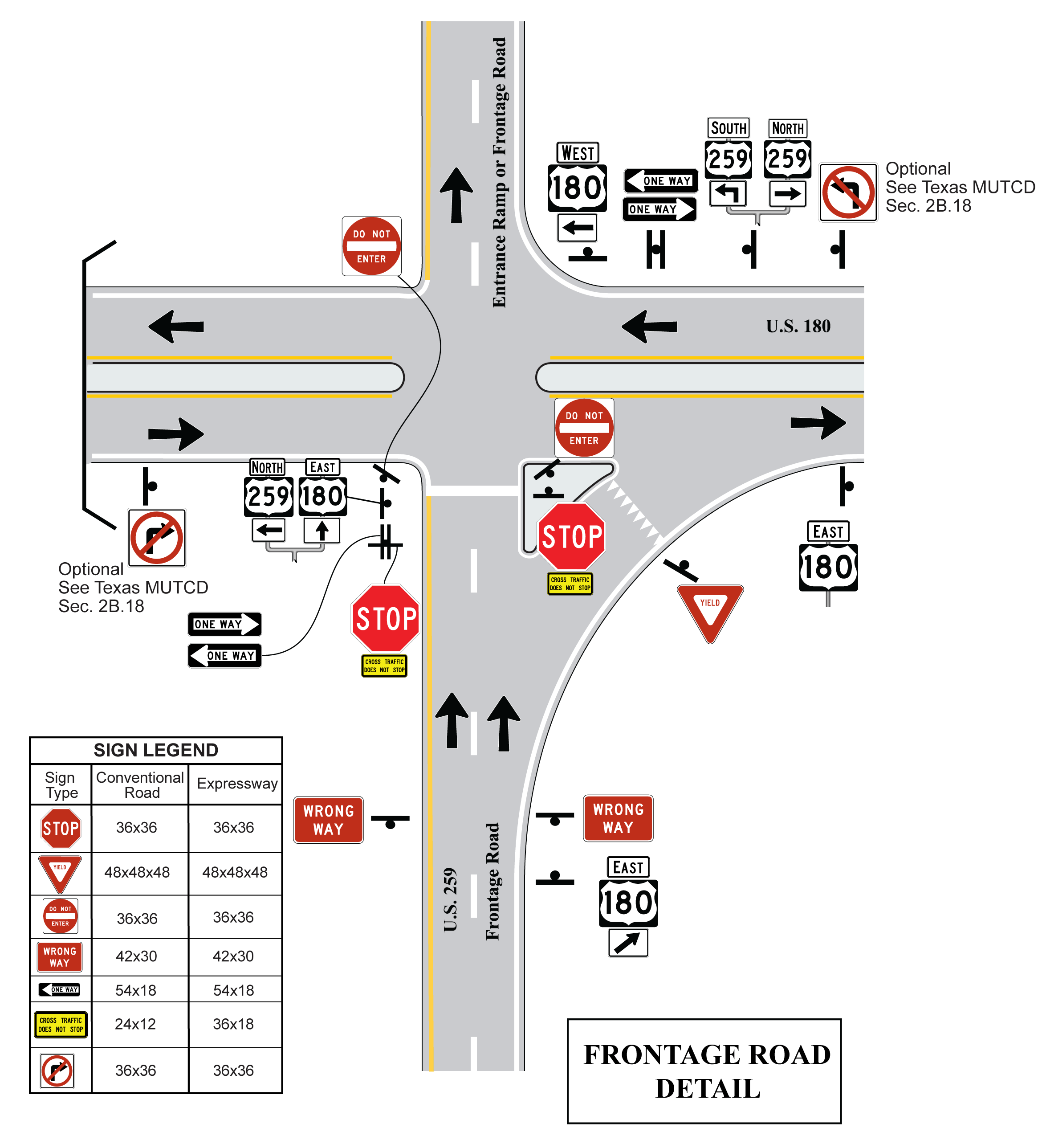

Figure 7-19. One-Way Frontage Road Intersection Area Detail

One-Way Frontage Road with Exit Ramp, Two-Lane
Approach, Stop Control (click in image to see full-size image) Anchor: #OLITTFQLgrtop

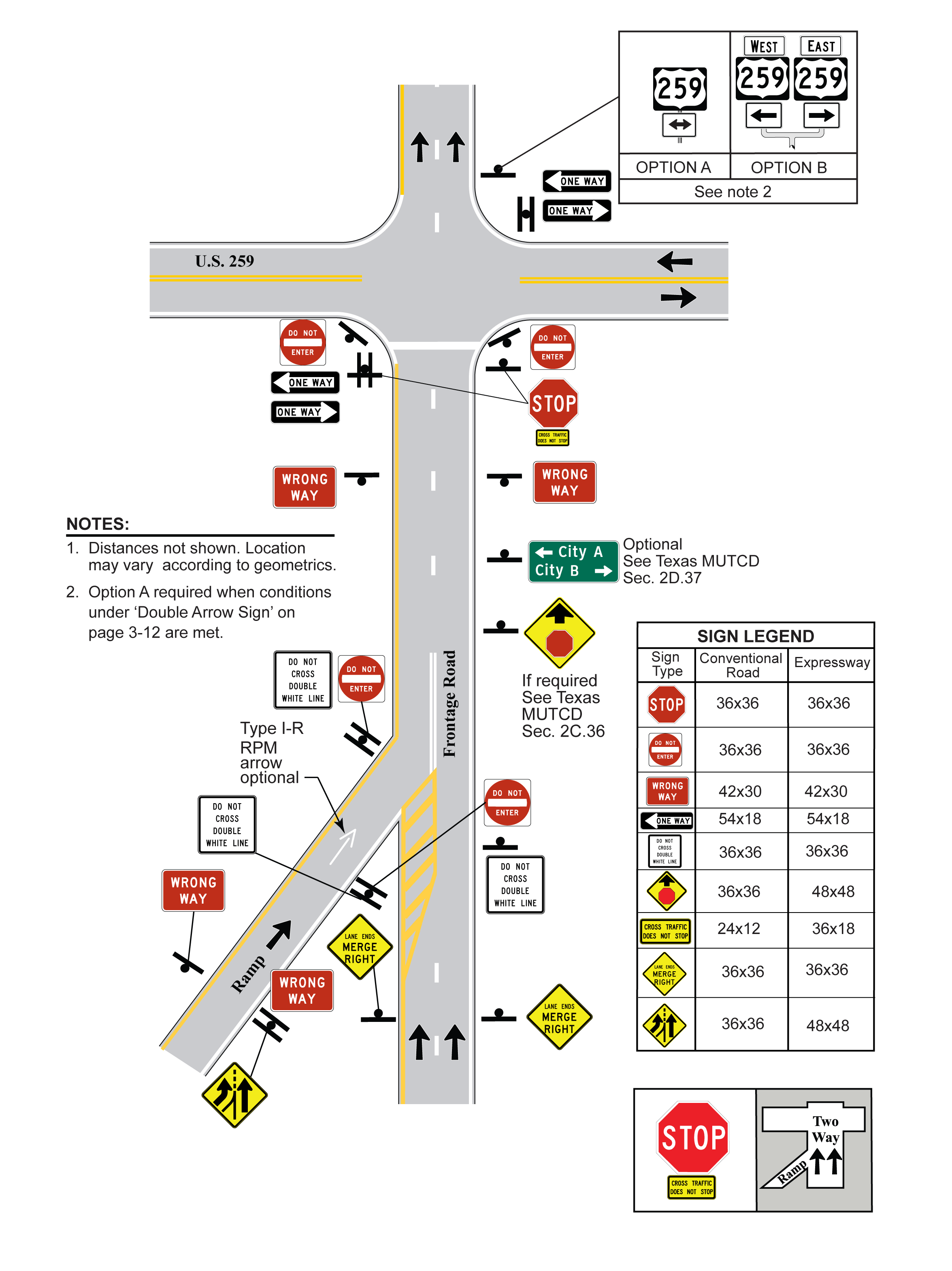

Figure 7-20. One-Way Frontage Road with Exit Ramp, Two-Lane Approach, Stop Control

Two-Way Frontage Road with Exit Ramp, One-Lane
Approach, Stop Control (click in image to see full-size image) Anchor: #TDCRSWTMgrtop

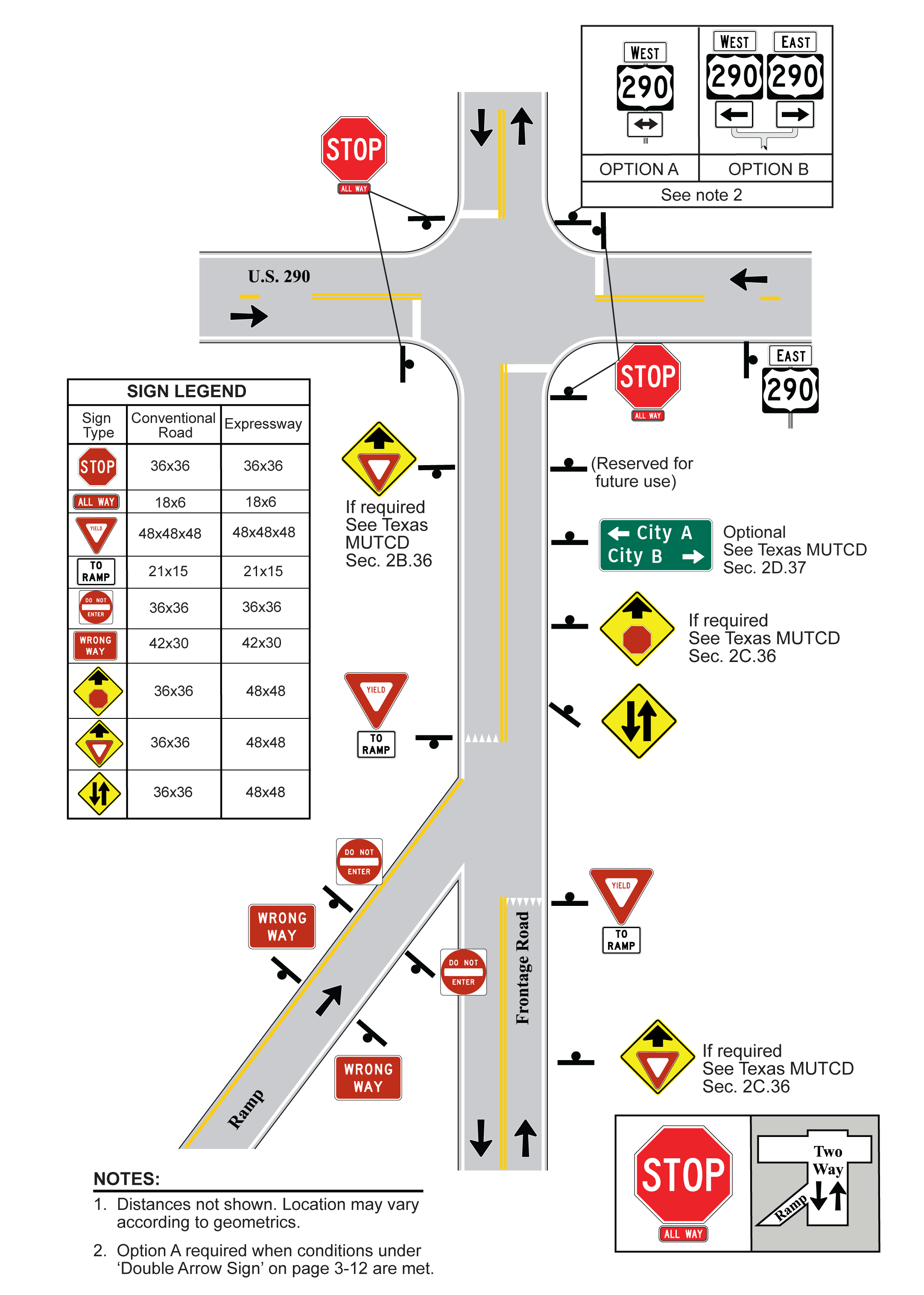

Figure 7-21. Two-Way Frontage Road with Exit Ramp, One-Lane Approach, Stop Control
