Section 3: Intersection Departure Illustrations

Anchor: #i999332

Introduction

Figures 6-1, 6-2, and 6-3 illustrate the placement of signs on the departure, the no sign zone concept, and the minimum separation distance between signs.

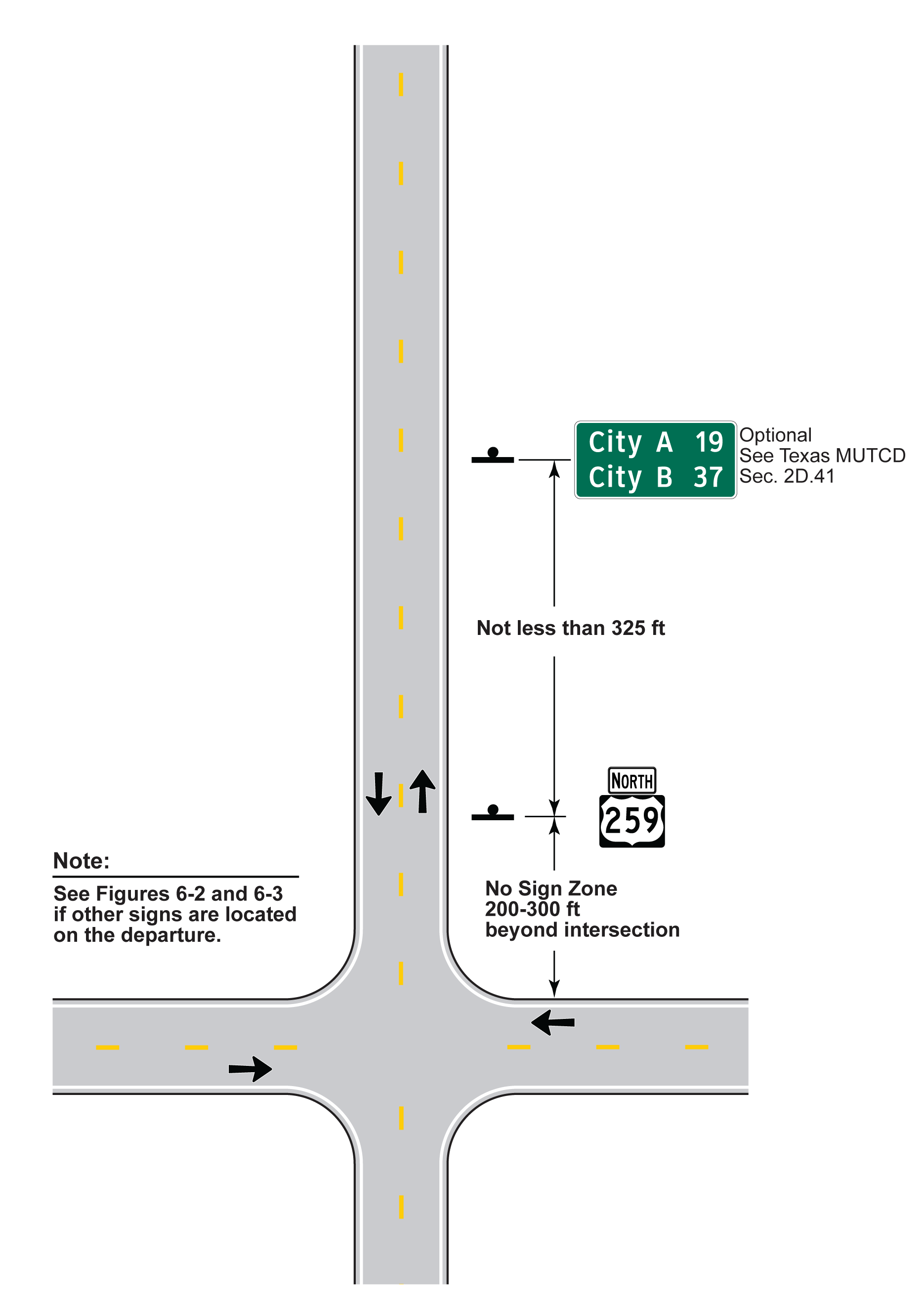

Departure Sign Placement, Guide Signs Beyond
the No Sign Zone (click in image to see full-size image) Anchor: #DJGANIXOgrtop

Figure 6-1. Departure Sign Placement, Guide Signs Beyond the No Sign Zone

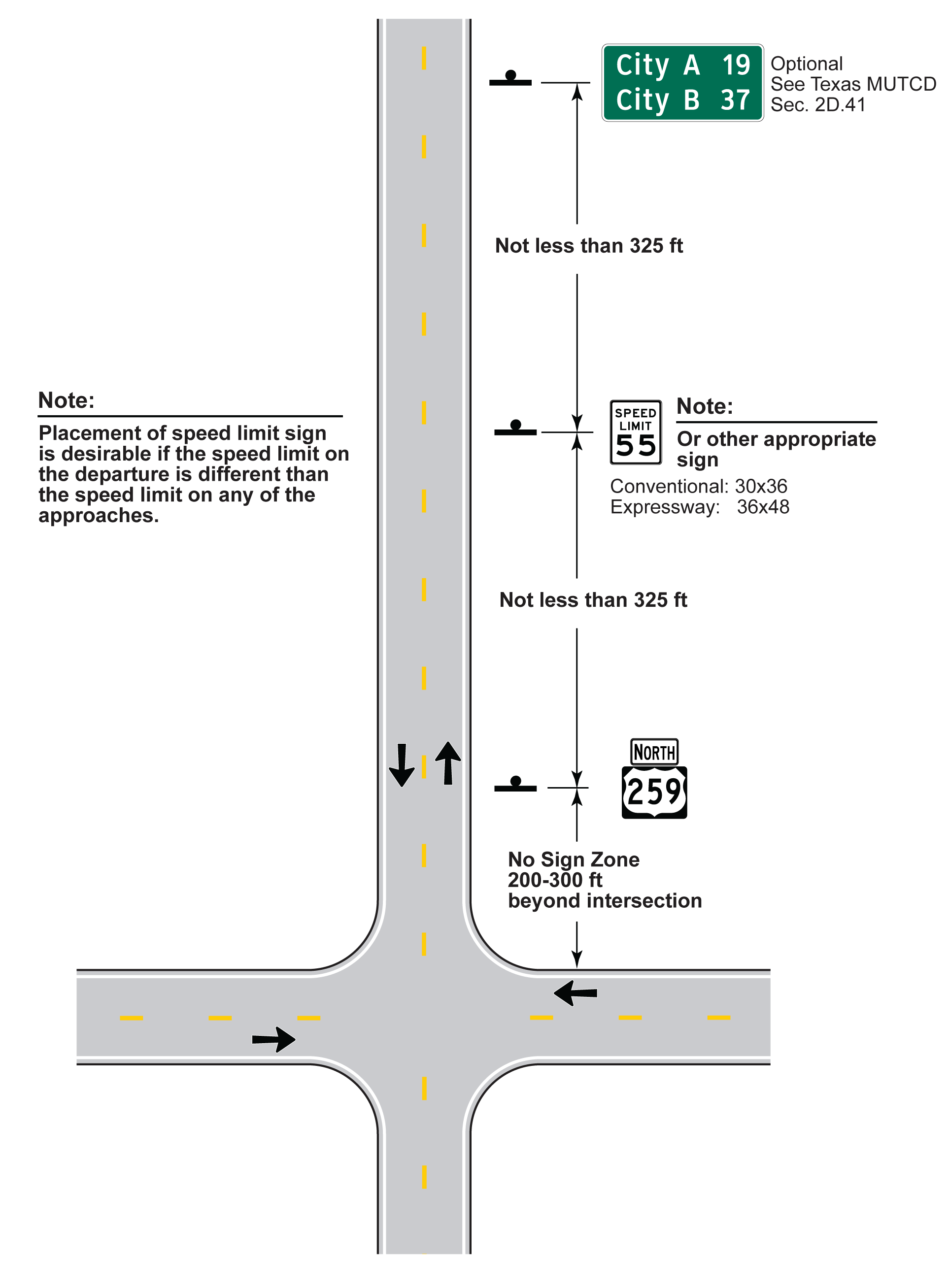

Departure Sign Placement, Multiple Signs
Beyond the No Sign Zone (click in image to see full-size image) Anchor: #HJGFOVSNgrtop

Figure 6-2. Departure Sign Placement, Multiple Signs Beyond the No Sign Zone

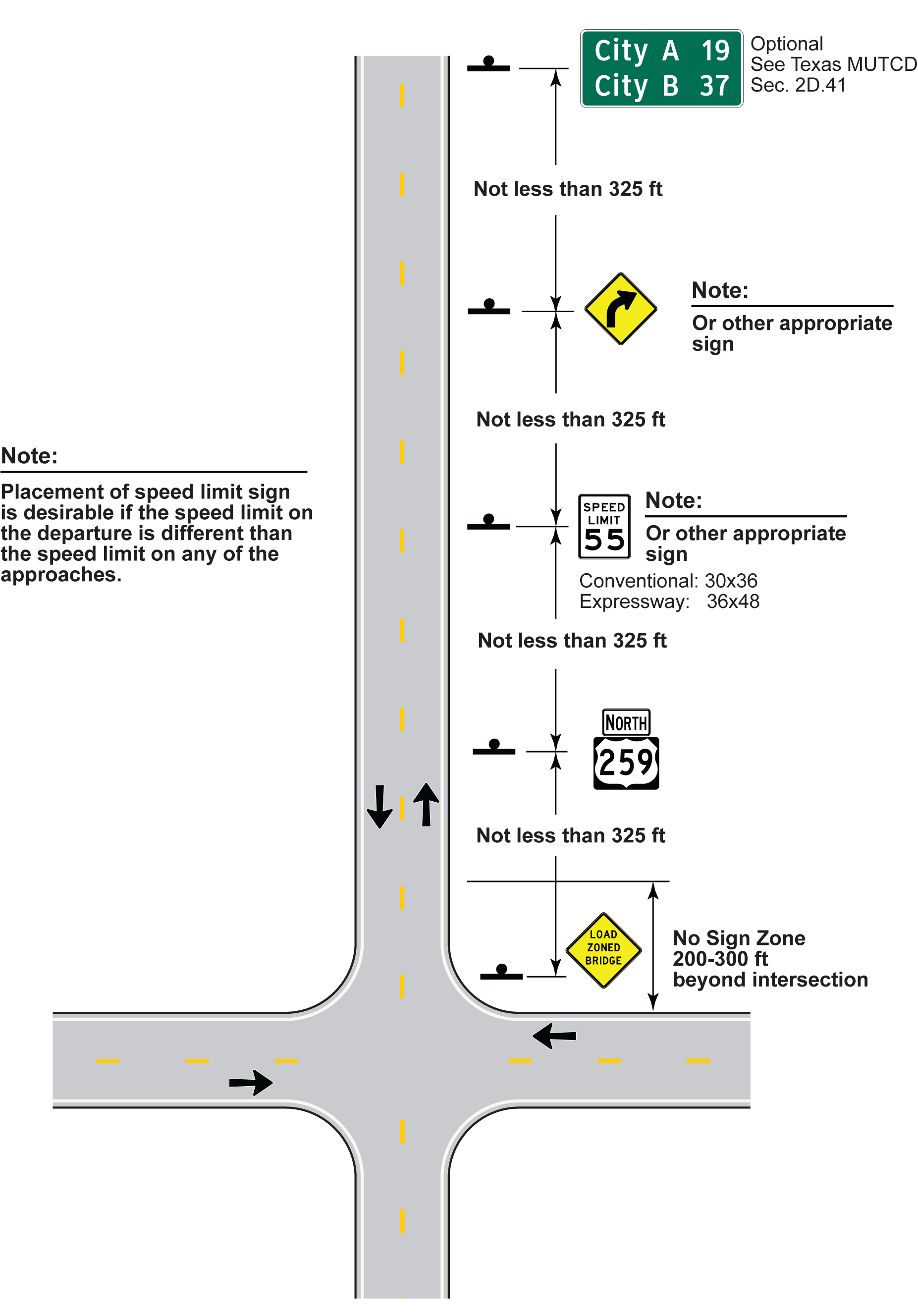

Departure Sign Placement, Signs Located
Within the No Sign Zone (click in image to see full-size image) Anchor: #BYJARSLOgrtop

Figure 6-3. Departure Sign Placement, Signs Located Within the No Sign Zone
