Section 7: Divided Highway Transitions

Anchor: #i1023230

Introduction

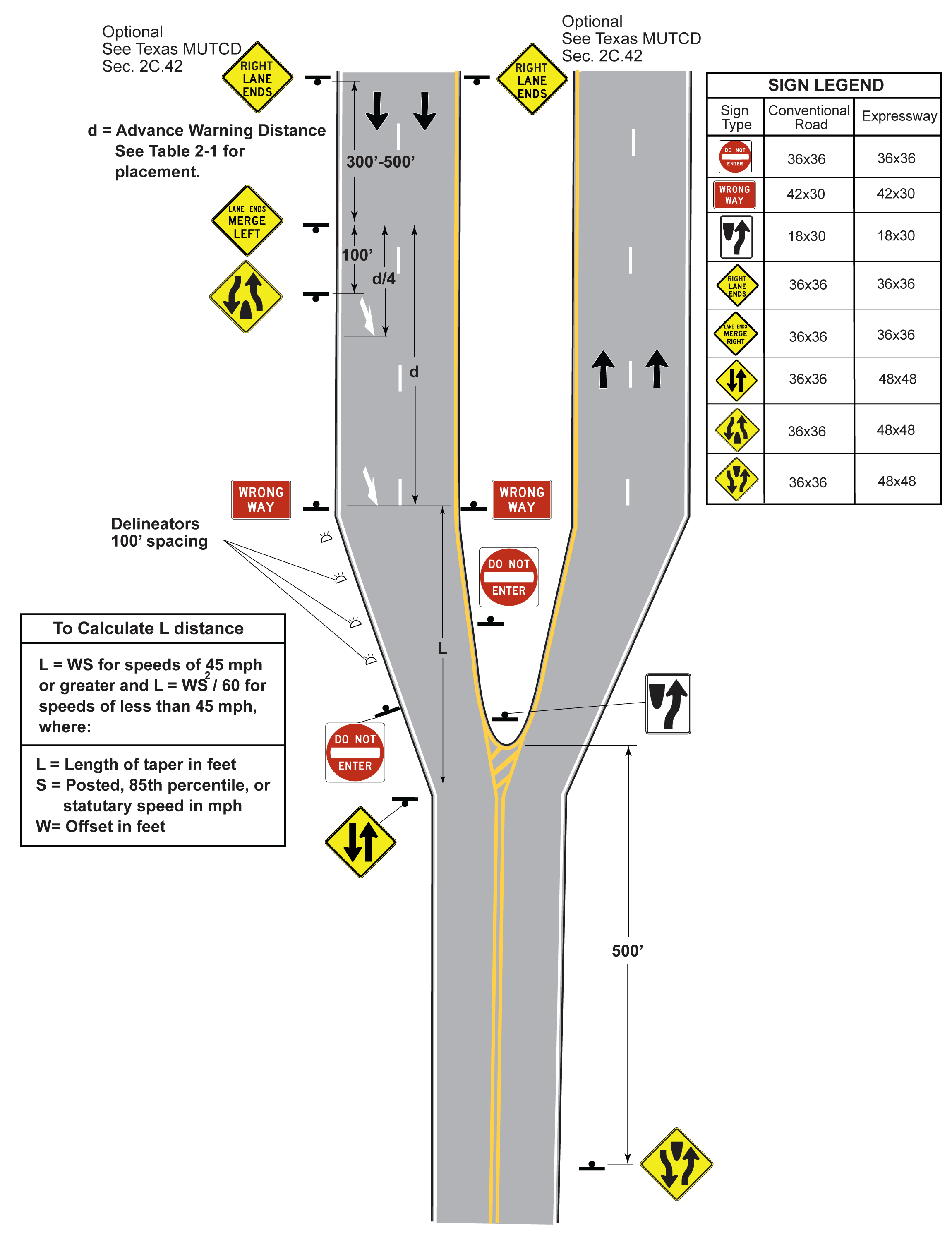

Figure 7-23 illustrates a scenario where a two-lane undivided highway transitions to a four-lane divided highway.

Anchor: #WQHKXVUHgrtop

Figure 7-23. Transition to 4-Lane Divided Highway
