Section 6: Lane Drop Applications

Anchor: #i1000430

Lane Drop at No Control Intersections

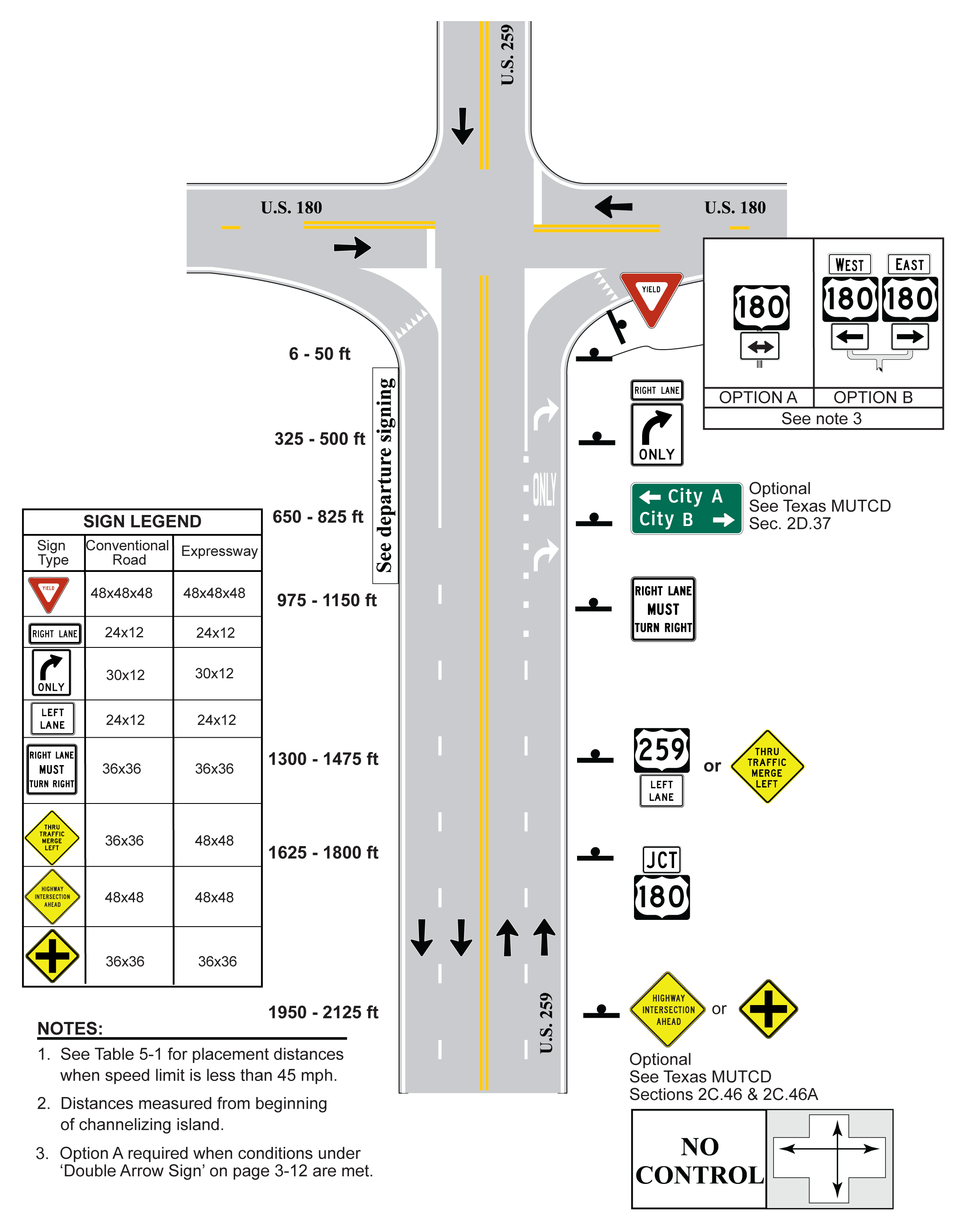

Figure 7-22 indicates the placement for signing at an intersection approach with no control where there is a lane drop on the through highway.

Anchor: #UKLPYVJKgrtop

Figure 7-22. Lane Drop at Intersection
