Section 4: Mailbox Hardware

Anchor: #i1002079

Introduction

This section presents common information associated with mailbox hardware. The mailbox standards sheets (MB-15(1) and MB-14(2)) contain detailed information about mailbox hardware, DHT numbers, and installation guidelines.

Anchor: #i1002089

Types of Supports

There are two general types of mailbox supports and specific hardware associated with each type of support:

    Anchor: #PTIXFWVQ
  • Single Mailbox Support: Any of these supports can be used to support a single mailbox.
      Anchor: #RVMFQIGC
    • Thin-wall Steel Tube: A 2 to 2½ inch diameter thin-wall steel tube. This type of post can be used with a small, medium, or large sized mailbox.
      • Anchor: #OTANSRSO
    • Wing Channel Post: A 2 pound/ft wing channel post. This type of post can be used with a small or medium sized mailbox.
      • Anchor: #ICBHQWRC
    • Recycle Rubber Post: A rubber post. This type of post is used only for a small size mailbox.
    • Anchor: #YDAWBANO
  • Double Mailbox Support: This support is used to support two mailboxes on a single support.
    • Anchor: #SFPXSNDE
  • Multiple Support: Either of these supports can be used for three or more mailboxes.
      Anchor: #RDHUMYFP
    • Coat Hanger Support: A 2 inch diameter thin-wall steel tube support frame that has a shape similar to an upside down coat hanger. See Figure 9-8.
      • Anchor: #KVQJCWHO
    • Constant Radius Support: A 2 3/8 inch diameter white powder-coated semi-circular pipe with a constant radius. See Figure 9-9.

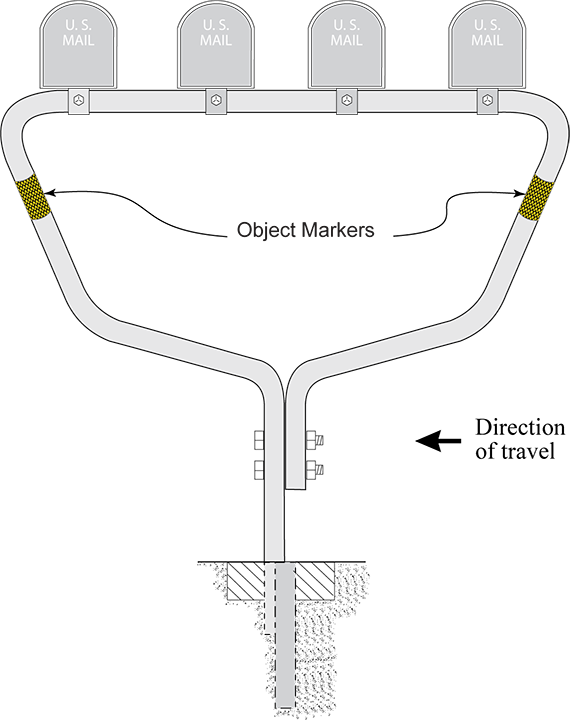

Coat Hangar Multiple Support (click in image to see full-size image) Anchor: #LPFLXKQPgrtop

Figure 9-8. Coat Hangar Multiple Support

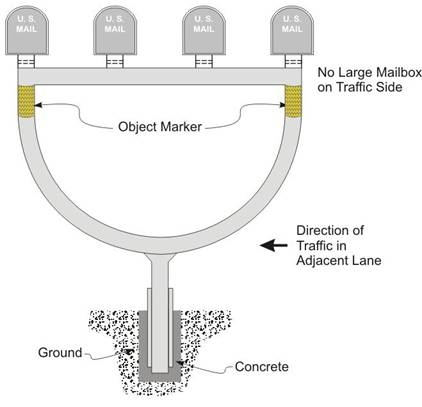

Constant Radius Multiple Support (click in image to see full-size image) Anchor: #RCIEJATNgrtop

Figure 9-9. Constant Radius Multiple Support

Anchor: #i1002169

Types of Foundations

There are six types of foundations. Table 9-2 lists the foundations and indicates which type of foundation is used with each type of support.

Anchor: #i1007323Table 9-2: Support and Foundation Combinations

Type of Support

Type of Foundation

V-Loc

Wedge Anchor

Driven

Concrete

Embedded

Temporary

Thin-Wall Steel Tube

Type 1

Type 2

No

No

No

No

Thin-Wall Multiple (coathanger)

Type 1

No

No

No

No

No

Wing Channel

No

No

Type 3

No

No

No

Powdercoat Steel (constant radius)

No

No

No

Type 4

No

No

Recycled Rubber

No

No

No

Type 4

No

No

4 x 4 Wood

No

No

No

No

Type 5

No

Plastic Drum

No

No

No

No

No

Type 6


Figure 9-10 illustrates the orientation of the supports/anchors relative to the direction of traffic. Where a wedge is used, it is installed on the side of the support nearest the direction of traffic.

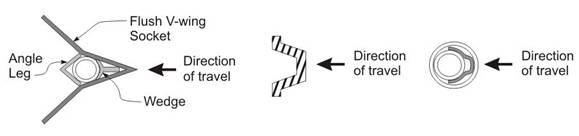

Orientation of Supports/Anchors for Single/Double Mailbox Installations (click in image to see full-size image) Anchor: #YOHCHNQHgrtop

Figure 9-10. Orientation of Supports/Anchors for Single/Double Mailbox Installations

Anchor: #i1002198

Mailbox Bracket

The TxDOT universal mailbox bracket provides a single bracket that can be used to mount a small, medium, or large mailbox to a single or multiple support. Figure 9-11 illustrates the basic mailbox bracket. The extensions are used only with a medium or large mailbox. Bolts with a 3/8 inch diameter should be used to provide a tighter fit and prevent the mailbox from rocking. Figures 9-12 to 9-15 illustrate the attachment of the bracket to mailbox supports.

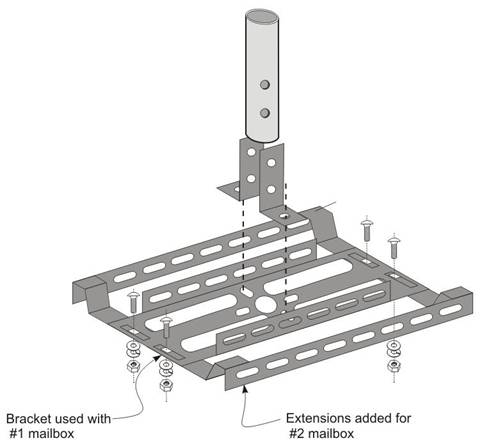

Mailbox Bracket (shown upside down) (click in image to see full-size image) Anchor: #XTCKUDUIgrtop

Figure 9-11. Mailbox Bracket (shown upside down)

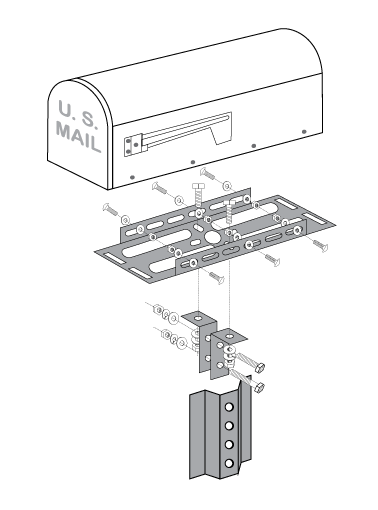

Attaching the Bracket to a Single Support (click in image to see full-size image) Anchor: #LWOKFOXPgrtop

Figure 9-12. Attaching the Bracket to a Single Support

Use of the Adapter Plate for a Double Mailbox Installation (click in image to see full-size image) Anchor: #HYWMDWDSgrtop

Figure 9-13. Use of the Adapter Plate for a Double Mailbox Installation

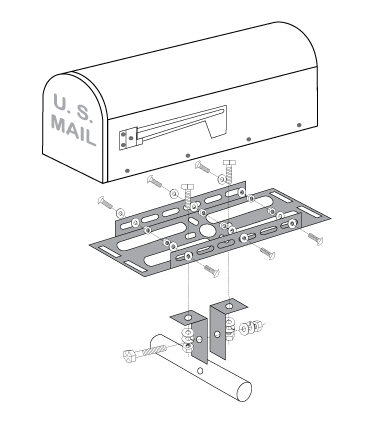

Attaching the Bracket to the Multiple Support (click in image to see full-size image) Anchor: #FRMVXIQMgrtop

Figure 9-14. Attaching the Bracket to the Multiple Support

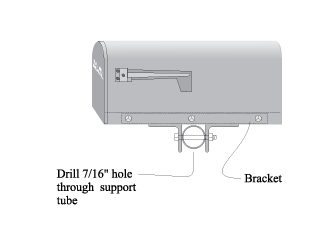

Bolting the Bracket to a Multiple Support Tube (click in image to see full-size image) Anchor: #QPUPQQFVgrtop

Figure 9-15. Bolting the Bracket to a Multiple Support Tube

The following list of tasks provides step-by-step instructions for putting the bracket together:
