Section 6: V-Box Spreader

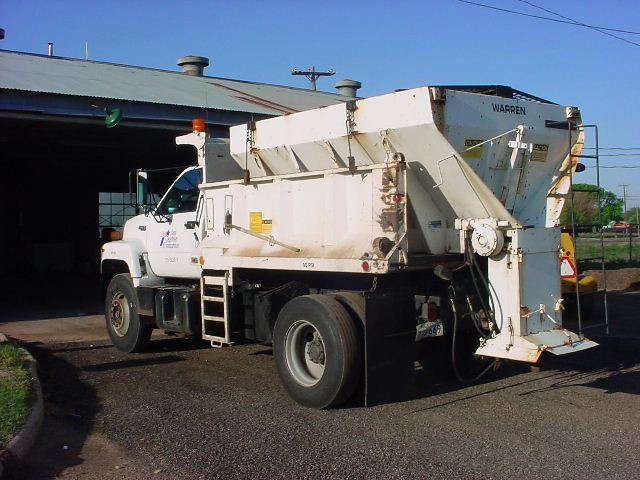

Figure 3-5. The V-Box Spreader is an attachment for a dump bed truck. It is used to accurately put out applications of de-icing materials on bridges and icy spots. These spreaders can either be hydraulic or gasoline operated.
Anchor: #i1003845Pre-storm activities
Well before a storm strikes, be sure to:
- Anchor: #OFHKHNFE
- perform V-Box Spreader Inspection Checklist Anchor: #WTOHDSBO
- on gasoline system check fuel, electrical, drive belt, fuel filters and engine oil Anchor: #FRGUGCKB
- check spinner assembly (hinge rod and spinner disk) Anchor: #XGMUUFRK
- check conveyor system (conveyor chain and belt) Anchor: #ITGWFRNU
- check all hydraulics Anchor: #DRCURBSD
- check PTO and drive assembly or direct drive Anchor: #DULRCGWP
- calibrate equipment for specific application rate desired.
During the storm activities
While using the equipment during a storm:
- Anchor: #FUJRVVTF
- check for accurate dispersal of materials Anchor: #OIFXHBNX
- perform a visual inspection of the equipment during operation to check for any problems (leaks, lights, etc.) Anchor: #PHIEIFWN
- check oiler on belt for fluid level.
Post storm activities
Once the storm is over, be sure to:
- Anchor: #UBQXXXLP
- remove material from spreader box and clean and wash thoroughly Anchor: #XXICDKQX
- check for leaks and wear on hoses (hydraulic system) Anchor: #EQXIXHSB
- check fuel filter (on gasoline system) and make sure the equipment is ready for the next snow event Anchor: #UFQPCASW
- make sure all lights are operational on the spreader Anchor: #MVMHJUCR
- check the conveyor system (belt and chain).
