Section 5: Cross-Street Route Signing

Anchor: #i999943

Introduction

Figure 6-18 through Figure 6-21 illustrate cross-street route signing for typical and non-typical entrance ramp locations. The frontage road in the preceding figures can be two-way or one-way, or ramps leading directly to the freeway.

Anchor: #i999234

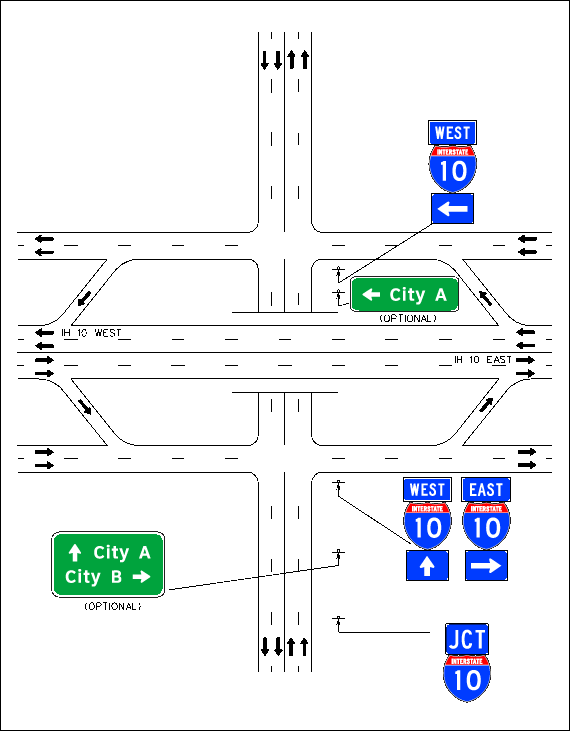

Figure 6-18. Cross-street route signing for left-direction entrance ramp located on the far-left frontage road and right-direction entrance ramp located on near-right frontage road.

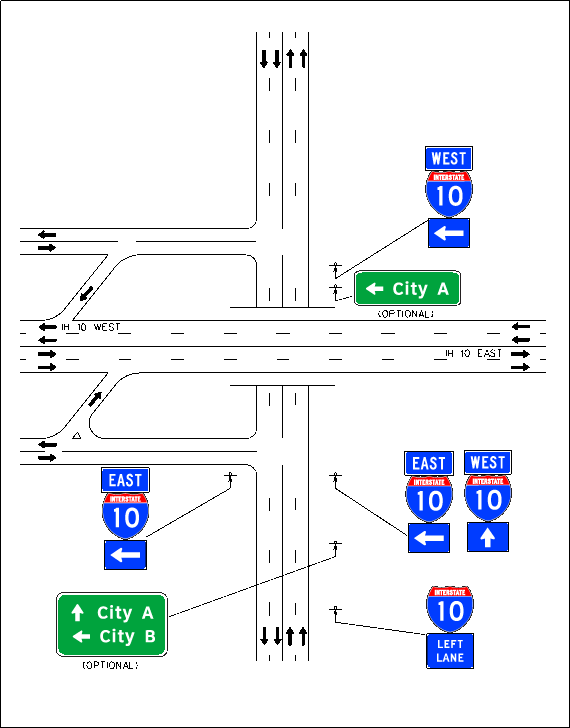

Figure 6-19. Cross-street route signing for left-direction entrance ramp located on the far-left frontage road and right-direction entrance ramp located on near-left frontage road.

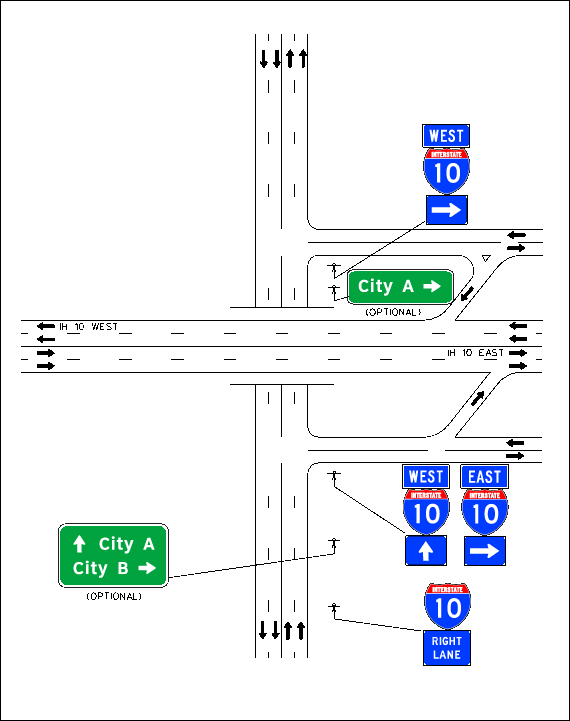

Figure 6-20. Cross-street route signing for left-direction entrance ramp located on the far-right frontage road and right-direction entrance ramp located on near-right frontage road.

Anchor: #i999236

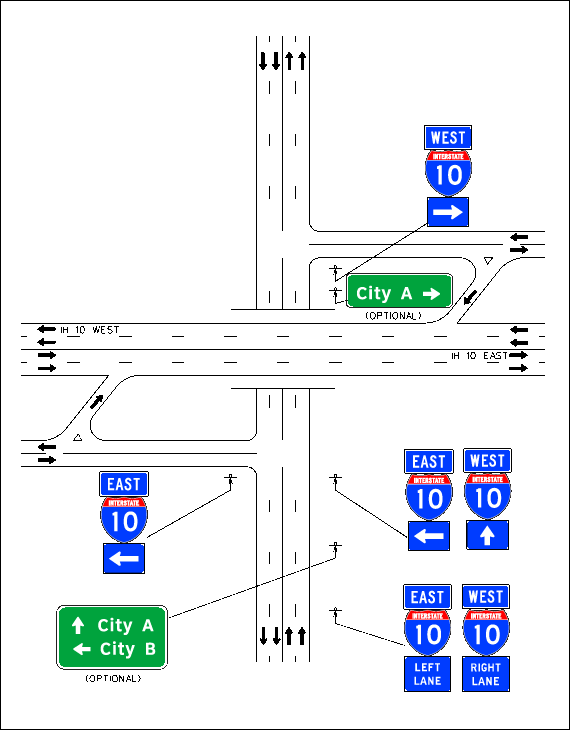

Figure 6-21. Cross-street route signing for left-direction entrance ramp located on the far-right frontage road and right-direction entrance ramp located on near-left frontage road.
