Section 6: Other Situations

Anchor: #i1004406

Freeway Ends

Figure 5-33 illustrates signing for a freeway-ends situation.

Anchor: #i1001617

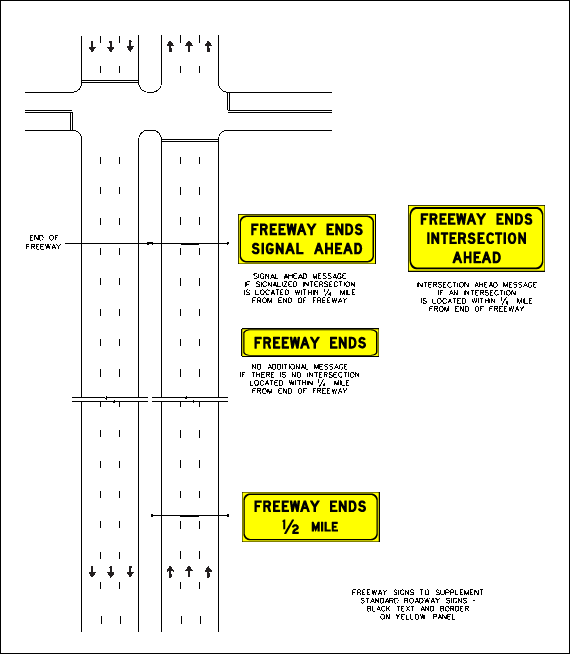

Figure 5-33. Freeway signing for a freeway-ends situation.

Anchor: #i1004426

Lane Ends

Figure 5-34 illustrates signing for a left-lane ends situation on a freeway.

Anchor: #i1001621

Figure 5-34. Freeway signing for a left-lane ends situation.
