Section 2: Entrance Ramp Signing

Anchor: #i999721

Introduction

Figure 6-1 through Figure 6-3 illustrate entrance ramp signing for one-way and two-way frontage roads.

Anchor: #i999210

Figure 6-1. Typical signing for an entrance ramp from a one-way frontage road – diverge condition.

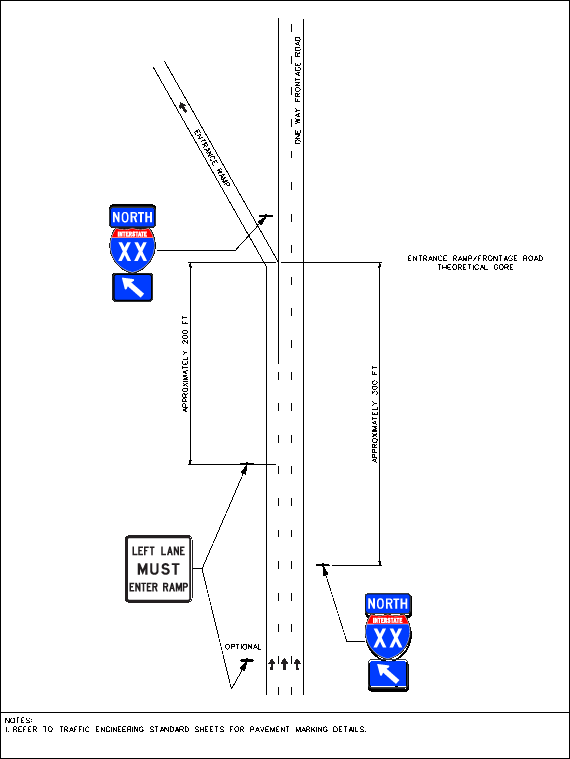

Figure 6-2. Typical signing for an entrance ramp from a one-way frontage road – lane-drop condition.

Anchor: #i999212

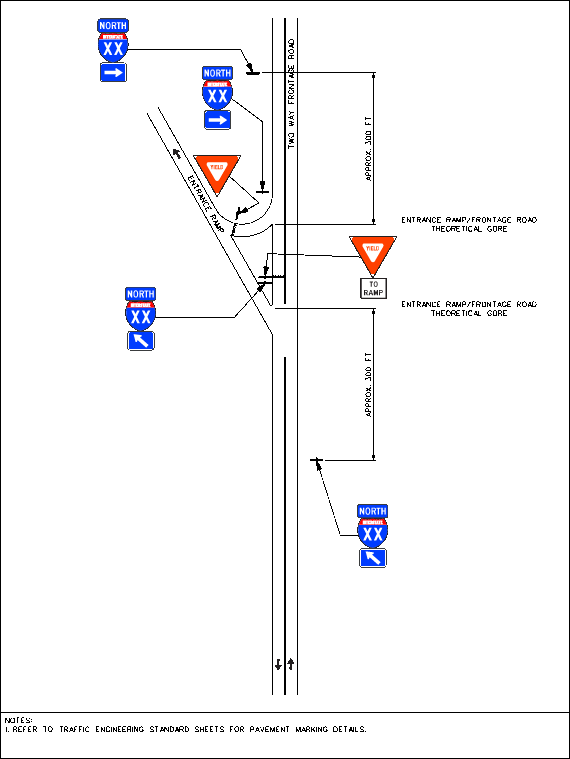

Figure 6-3. Typical signing for an entrance ramp from a two-way frontage road.
