Section 20: City Limit Signs
Anchor: #i1087458Introduction
The Texas Department of Transportation (TxDOT) may install CITY LIMIT (I-2aT) signs on any on-system highway for incorporated towns or cities. Signs should not be installed for a municipality’s extraterritorial jurisdiction (ETJ). TxDOT may install (I-2cT) signs along conventional highways for unincorporated communities that are landmarks, geographical interests, or areas that may be of interest to travelers that are sometimes useful for orientation information.
Anchor: #i1087507Requirements
TxDOT may install a CITY LIMIT sign if one or more of the following conditions are met:
- Anchor: #PVJOVEWL
- The area is listed in the latest U.S. Census, OR Anchor: #BTOVJTTQ
- The area is listed in the latest Texas Almanac under “Cities and Towns” (This does not include those listed as a “past”, “defunct”, or “earlier name” town, etc.), OR Anchor: #BAIVYSXT
- The area is shown on the latest “Texas Official Travel Map”.
Freeways and Conventional Roads
CITY LIMIT signs on freeways and expressways shall not carry any population figure on the sign. If the CITY LIMIT sign is used on conventional roads, it may include the population.
Anchor: #i1087704Population
Districts should use the latest census to determine the population. The population may be updated, at most, every two years at the request of the city. TxDOT does not initiate any population revisions on city limit signs. If the city does request a population change, the city should submit some type of documentation.

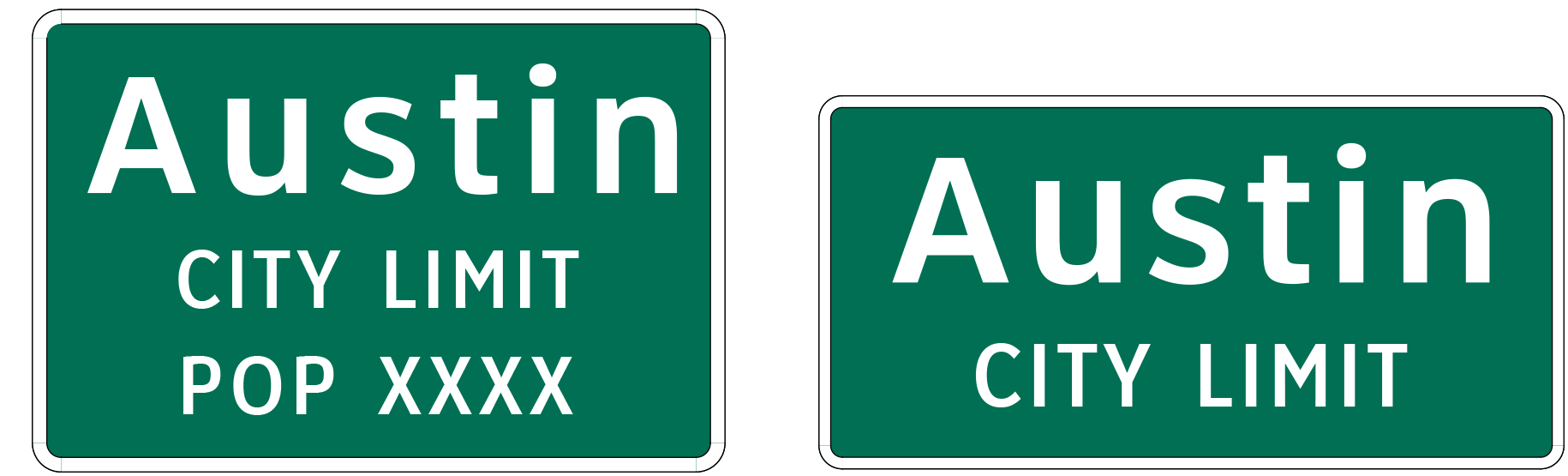

Figure 7-15. CITY LIMIT SIGNS (1-2aT) for conventional roads and freeways
