Section 5: Design Elevation and Freeboard

In determining the design elevation for transportation infrastructure, the designer must consider multiple factors, including flood frequency, road classification, average daily traffic (ADT), site restrictions, wave height, sea level rise, and freeboard. This section describes the process in determining design elevation and considerations when evaluating appropriate freeboard requirements. This section builds off the concepts in Sections 2 and 3, which provided the technical background on coastal water levels and wave dynamics.

Anchor: #i1026422

Establishing a Design Elevation

For existing infrastructure, begin by reviewing the bridge or roadway elevations from as-built drawings or surveys, as well as maintenance reports that would indicate how nearshore coastal processes have impacted the project area. For new coastal infrastructure projects, the historical coastal hazards at the site can be investigated through references such as site surveys, desktop analysis, historical imagery, interviews with residents and stakeholders, among others and can help inform the design elevation ultimately selected.

Bridges and roadways designed on the coast may be elevated above the design elevation, which includes the cumulative effects of stillwater levels above typical water levels from storm tides and relative sea level rise, as well as increases in elevation from waves and subsequent runup. This design elevation would be dictated by the appropriate return period as established in the previous sections. In many cases, however, it is not practical to elevate a coastal roadway above the design elevation. In these cases, understanding that a coastal roadway may be more readily influenced by tidal ranges and relative sea level rise will help determine likely drainage impacts and general accessibility limitations that should be communicated to appropriate authorities and stakeholders. In general, determining the primary drivers of infrastructure impacts, such as the nearshore coastal processes that are most likely to occur, will enable proper consideration of coastal conditions when elevating a structure or providing freeboard. The design elevation can be computed using the methods previously discussed in Sections 2 and 3.

The site conditions, such as the nearshore processes that appear to impact the site, will dictate the considerations to be made in water level data. Later in this section, three examples, one for each level of analysis, will illustrate how to determine a design elevation. In general, the designer should select a tide station close to the project site, convert the tidal data to the same datum as the project, and account for the stillwater level components that affect the project design, which can include: average tide range, annual high tides, storm tides, and future relative sea level rise projections. Upon determining the appropriate stillwater scenario, a subsequent wave analysis should be completed, resulting in an appropriate design elevation. Potential design elevation components are shown in Figure 15-20.

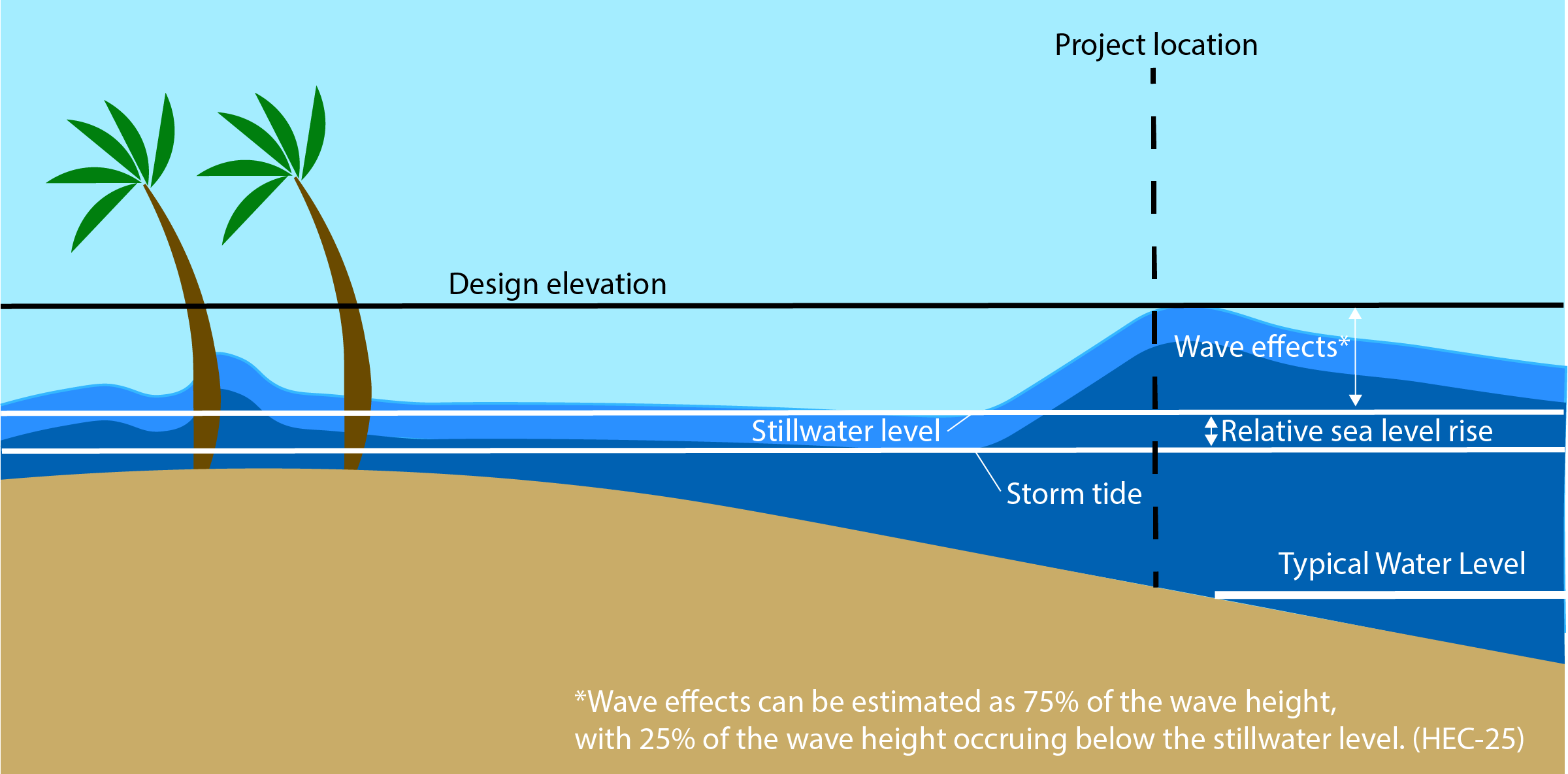

Design Elevation Diagram. (click in image to see full-size image) Anchor: #FDWOJUQFgrtop

Figure 15-20. Design Elevation Diagram.

Anchor: #i1026451

Freeboard Considerations

For coastal freeboard considerations, federal requirements require freeboard when practicable for bridges (23 CFR 650.115). TxDOT recommends one foot minimum of freeboard for coastal bridge applications, barring specific exemptions. TxDOT recommends two feet of freeboard for coastal bridge designs that include assumptions associated with Level 1 analyses and more approximate Level 2 analyses. For roadway applications, TxDOT does not have a specific recommendation for freeboard above the design storm, but for nuisance flooding concerns, TxDOT recommends utilizing 0.5-1.0ft of freeboard whenever possible above these more frequent annual tide events to minimize issues. Variations from these recommendations should be documented in the Design Summary Report (DSR), drainage report, and/or plans for each project. Freeboard, when included, is added to the maximum wave crest elevation to determine the design elevation.

Bridges

HDM Chapter 9 (Bridges), Section 3 (Bridge Hydraulic Considerations) indicates that navigational clearance and other reasons notwithstanding, the low chord elevation is established as the sum of the design elevation and freeboard.

For on-system bridges, the Department recommends a suitable freeboard based on the following criteria:

    Anchor: #EUDXDETB
  • Higher freeboards may be appropriate for bridges over waterways with debris potential or requiring clearance for the GIWW, as well as to accommodate other clearance needs.
  • Anchor: #CIABTJOA
  • Lower freeboards may be desirable because of constraints such as approach geometry. However, the design elevation should not impinge on the low chord. While it is acknowledged that certain coastal roadways cannot (or do not) meet this criteria, these exceptions must be clearly noted on both the plans and drainage reports.

Generally, for off-system bridge replacements, the low chord should approximate that of the structure to be replaced, unless the results of a risk assessment indicate that a different structure is the most beneficial option. The design freeboard, when considered in a coastal context, should also account for the uncertainty in high waves in the larger areas of open water, since the uncertainty in coastal storm surge and wave analysis can be just as great as uncertainty in riverine conditions.

Historically, in some cases, bridges have survived during storms because their elevations were lower than the full storm wave height. In those cases, it has been observed that wave loads may have been small enough that they did not generate critical damage to the bridge and that the weight of the bridge span was sufficient to overcome wave forces. However, a study of the I-10 Bridge over Mobile Bay, conducted by Auburn University, suggests that it is the structural design of a bridge in conjunction with the wave height, rather than wave height alone, that will determine the impacts of wave forces on the bridge structure. More research is needed to further detail the critical elevation for wave height on bridges.

Complete clearance over the wave height might not be needed or be achievable due to roadway and other design considerations. Likewise, it may not be economical within the roadway geometry design constraints. When complete clearance is desired but cannot be achieved, then the wave and storm tide impacts on the structures can be addressed through erosion and structural countermeasures, such as shoreline armoring or structural retrofits to counter wave forces. An advanced approach is to set the deck elevations based on modeled wave loads analyzed over the deck and pile cap design, to ensure that both can withstand wave loads.

Anchor: #i1026500

Design Elevation and Freeboard Calculation Examples

Example design calculations for each level of analysis, including freeboard considerations, are shown in Table 15-7 through Table 15-9 for the process of determining of a final design elevation. Project design elevation should also consider whether the project is a repair, replacement, or new alignment. For repairs and replacements, elevation changes could be more constrained and storm return periods or individual considerations, such as relative sea level rise, should be evaluated for practicality.

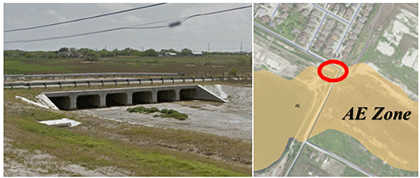

Anchor: #i1089620Table 15-7: Level 1 Analysis Design Elevation and Freeboard Calculation Example

Level 1 Analysis Example

Step

Activity

 (click in image to see full-size image)

1

Determine Storm Tide Elevation

Section 2

Obtain appropriate FEMA flood map elevations for study area

FEMA FIS Report Summary of Stillwater Elevations of 10 ft for 100-year design storm tide and 8.4 for 50-year design storm tide.

*Zone AE BFE shown on Flood Insurance Rate Map includes wave effects and runup and should not be used for stillwater elevation, reference the FIS for stillwater elevations.

2

Determine Relative Sea Level Rise Rate

Section 2

Obtain RSLR rates for project life cycle

Located in Nueces County, Region 3. Assumed 50-year design life for roadway and bridge starting in 2020. Relative sea level for 2070 is 3.0 ft per Section 2 guidance.

3

Interpolate Project Specific Relative Sea Level Rise

Section 2

The 3.0 ft for 2070 minus 0.7 ft from 2020.

Sea level change of 2.3 ft for project life.

4

Calculate Stillwater Elevation

Add the result of Step 3 (RSLR) to the elevations obtained in Step 1 (storm tide)

  • 10 ft plus 2.3 ft. gives a 100-year stillwater elevation of 12.3 ft.
  • 8.4 ft plus 2.3 ft. gives a 50-year stillwater elevation of 10.7 ft.

5

Obtain Ground Data

Section 2

Obtain appropriate ground surface elevation maps for study area

LiDAR and bathymetry from TNRIS show an average channel elevation of 7 ft.

*Ground elevation should be confirmed with plans, survey, or bathymetry.

6

Determine Stillwater Depth

Subtract ground elevations (Step 5) from values found in Step 4 to obtain flood depth

  • 100-year: 12.3 ft minus 7 ft equals a depth of 5.3 ft.
  • 50-year: 10.7 ft minus 7 ft equals a depth of 3.7 ft.

7

Determine Maximum Wave Height

Section 3

Multiply stillwater depths (Step 6) by 0.8 to determine maximum wave height.

  • 100-year: 5.3 ft times 0.8 equals 4.24 ft wave height
  • 50-year: 3.7 ft times 0.8 equals 2.96 ft wave height

*If the project is located adjacent to a FEMA coastal transect, it is also possible to determine appropriate wave parameters from the Flood Insurance Study documentation. If wave heights significantly exceed the FEMA designated zone, a different method should be considered, such as Level 2 techniques. For example, if landward of the LiMWA, wave heights should likely not exceed approximately 1.5 feet, and if in an AE zone rather than a VE, they should not exceed 3 feet. Inclusion of RSLR could impact FEMA data applicability in some cases.

8

Determine Wave Crest Elevation

(Design Elevation w/out Freeboard)

Multiply maximum wave height (Step 7) by 0.75, add to Step 4 for wave crest elevations. 75% of the wave height being above the stillwater elevation is a standard estimate for basic wave calculations (HEC-25).

  • 100-year:
    • 4.24 ft times 0.75 equals 3.18 ft
    • 12.3 ft plus 3.18 ft equals 15.48 ft
  • 50-year:
    • 2.96 ft times 0.75 equals 2.22 ft
    • 10.7 ft plus 2.22 ft equals 12.92 ft

*These values should be compared to historical storm observations, while considering adjustments for RSLR. If there are significant discrepancies, a Level 2 analysis may be warranted.

9

Determine Freeboard

Section 4

Consider freeboard based on road classification and site conditions.

Local roads and streets, non-critical, do not require freeboard per AASHTO guidance. Per guidance in this chapter, bridged waterways analyzed with Level 1 methods recommend 2.0 ft freeboard over the design storm tide plus wave height. Both an example of bridge calculations and roadway calculation are shown in Steps 10 and 11.

10

Determine Bridge Design Elevation

(Low Chord)

Section 4

The bridge low chord design elevation is determined using the freeboard from Step 9 and the 50-year design elevation from Step 8.

  • 12.92 ft plus 2.0 ft equals 14.92 ft

*Application of wave effects, RSLR, and freeboard should be evaluated for each project independently. These calculations can be completed removing individual components as appropriate.

11

Determine Roadway Design Elevation

Section 4

The roadway design elevation is determined using the 50-year return period based on roadway classification in AASHTO guidance documents. Because there is no freeboard recommended, the design elevation is the same as the elevation determined in Step 8, 12.92 feet.

*Application of wave effects, RSLR, and freeboard should be evaluated for each project independently. These calculations can be completed removing individual components as appropriate.

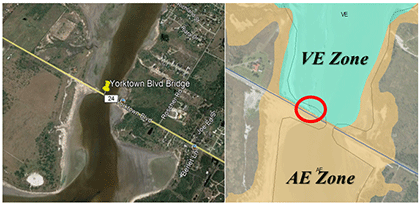

Anchor: #i1094660Table 15-8: Level 2 Analysis Design Elevation and Freeboard Calculation Example

Level 2 Analysis Example

Step

Activity

 (click in image to see full-size image)

1

Determine Storm Tide Elevation

Section 2

Obtain appropriate FEMA flood map elevations for study area

Multiple return periods could be required for additional calculations such as scour, but for simplicity, only the 50-year return period is shown in this example for establishing deck elevation. FEMA FIS Report Summary of Stillwater Elevations of 12.5 ft for 50-year design storm tide.

*Zone AE BFE shown on Flood Insurance Rate Map includes wave effects and runup and should not be used for stillwater elevation, reference the FIS for stillwater elevations.

2

Determine Relative Sea Level Rise Rate

Section 2

Obtain RSLR rates for project life cycle

Located in Orange County, Region 1. Assumed 75-year design life for bridge starting in 2020. Relative sea level for 2095 is 5.15 ft per Section 2 guidance.

3

Interpolate Project Specific Relative Sea Level Rise

Section 2

The 5.15 ft for 2095 minus 0.8 ft from 2020.

Sea level change of 4.35 ft for project life.

4

Calculate Stillwater Elevation

Add the result of Step 3 (RSLR) to the elevations obtained in Step 1 (storm tide)

  • 12.5 ft plus 4.35 ft. gives a 50-year stillwater elevation of 16.85 ft.

5

Obtain Ground Data

Section 2

Obtain appropriate ground surface elevation maps for study area

LiDAR and bathymetry from TNRIS show an average elevation of 4 ft.

*Ground elevation should be confirmed with plans, survey, or bathymetry.

6

Determine Stillwater Depth

Subtract ground elevations (Step 5) from values found in Step 4 to obtain flood depth

  • 50-year: 16.85 ft minus 4 ft equals a depth of 12.85 ft

7

Determine Maximum Wave Height

Section 3

Utilizing stillwater data obtained previously and local historical wind data from a nearby NOAA station, develop a wave analysis using a 1D wave model such as Coastal Engineering Design and Analysis System (CEDAS) or through spreadsheet-based calculations.

Model inputs include water depth, wind speed and duration, fetch length, typical temperature and project latitude. The resulting datasets should be statistically evaluated to determine a 50-year return period value for wave height and period. This example analysis yielded a 50-year wave height of 3.81 feet and a wave period of 3.82 seconds.

8

Determine Wave Crest Elevation

(Design Elevation w/out Freeboard)

Multiply design wave height (Step 7) by 0.75, add to Step 4 for wave crest elevations. 75% of the wave height being above the stillwater elevation is a standard estimate for basic wave calculations (HEC-25).

  • 50-year:
    • 3.81 ft times 0.75 equals 2.86 ft
    • 16.85 ft plus 2.86 ft equals 19.71 ft

*These values should be compared to historical storm observations, while considering adjustments for RSLR. If there are significant discrepancies, a Level 3 analysis may be warranted.

9

Determine Freeboard

Section 4

Consider freeboard based on road classification and site conditions.

Per guidance in this chapter, bridged waterways analyzed with more approximate Level 2 methods recommend 2.0 ft freeboard over the design storm tide plus wave height.

10

Determine Bridge Design Elevation

(Low Chord)

Section 4

The bridge low chord design elevation is determined using the freeboard from Step 9 and the 50-year design elevation from Step 8.

  • 19.71 ft plus 2.0 ft equals 21.71 ft

*Application of wave effects, RSLR, and freeboard should be evaluated for each project independently. These calculations can be completed removing individual components as appropriate.



Anchor: #i1096702Table 15-9: Level 3 Analysis Design Elevation and Freeboard Calculation Example

Level 3 Analysis Example

Step

Activity

 (click in image to see full-size image)

1

Determine Storm Tide Elevation

Section 2

Select, develop, and prepare appropriate numerical modeling tools

2D and 3D hydrodynamic, wave, storm surge, and morphologic models (e.g., ADCIRC+SWAN, Delft3D, MIKE3). Calculations required for design could determine whether a 2D or 3D model is required. If scour is expected to be critical, a 3D may be necessary to account for complex current patterns at the structure.

Validate and/or calibrate the models through hindcast simulations and analysis. Review past storms for data to use in calibrating the chosen model.

Elevations will be determined concurrently with Step 8.

2

Determine Relative Sea Level Rise Rate

Section 2

Obtain RSLR rates for project life cycle

Located in Galveston County, Region 1. Assumed 75-year design life for bridge starting in 2020. Relative sea level for 2095 is 5.15 ft per Section 2 guidance.

Review of current guidance or projections for RSLR should be considered and best available data should be utilized.

3

Interpolate Project Specific Relative Sea Level Rise

Section 2

The 5.15 ft for 2095 minus 0.8 ft from 2020.

Sea level change of 4.35 ft for project life.

Incorporate into water level inputs or similar model parameters.

4

Calculate Stillwater Elevation

Step completed concurrently with Step 8.

5

Obtain Ground Data

Section 2

Obtain appropriate ground surface elevation maps for study area and surrounding water body as needed.

An integrated LiDAR and bathymetry based digital elevation model will be necessary to utilize the model selected in Step 1. The extent of required data is dependent on the model mesh extents.

6

Determine Stillwater Depth

Internal calculations within model.

7

Determine Maximum Wave Height

Section 3

Step completed concurrently with Step 8.

8

Determine Wave Crest Elevation

(Design Elevation w/out Freeboard)

Using the hydrodynamic model, run the desired simulation for the design storms to get the information needed for design elevation: water levels, wave heights, and velocity.

Derive probabilities associated with water levels, wave heights, velocity, etc. as appropriate for the selected model.

9

Determine Freeboard

Section 4

Consider freeboard based on road classification and site conditions.

Per guidance in this chapter, 1.0 ft minimum freeboard is recommended for bridged waterways. Based on project specific observations and concerns with regards to debris, 3.0 ft freeboard is selected.

10

Determine Bridge Design Elevation

(Low Chord)

Section 4

The bridge low chord design elevation is determined using the freeboard from Step 9 and the 50-year design elevation from Step 8.

*Application of wave effects, RSLR, and freeboard should be evaluated for each project independently. These calculations can be completed removing individual components as appropriate.



TxDOT design flood and check flood minimum standards can be found in Chapter 4 (Hydrology), Section 6 (Design Flood and Check Flood Standards). In some cases, it may be required to calculate additional design storms for scour computations per the TxDOT Geotechnical Manual, Chapter 5 (Foundation Design), Section 6 (Scour).
